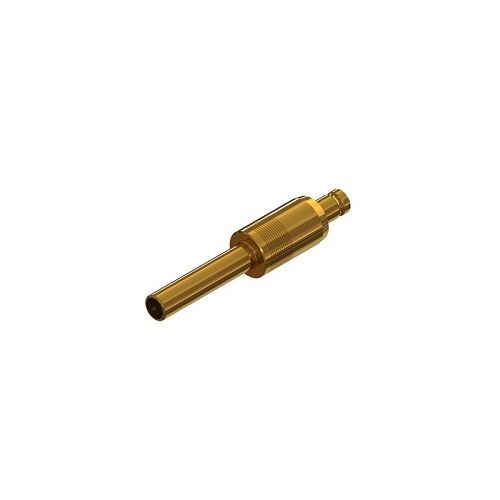

74-5279-511-D126 | 745279511D126 | 1.0/2.3 Jack to Micro Video Plug
Din 1.0/2.3 Jack to Micro Video Plug Straight Adaptor, This true 75 ohm Adaptor is designed for Full HD 1080p applications and general use up to 12GHz.
| Complete Electronics Part No. | 745279511D126 |
|---|---|
| Manufacturers Part No. | 74-5279-511-D126 |
| Male/Female: | Male and Female |
| Type | Straight |
| Impedance | 75 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 75 Ohm
- Frequency: Up to 12GHz
- Dielectric W/V: 1000 Veff
- Insulation: 10000 M Ohm
Mechanical Specification
- RoHS3 Compliant
- Weight: 5.9g
- Mating Force 10N max
- Un-Coupling Force: 10N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated):
Materials
- Centre Contact: Beryllium Copper
- Outer Contact Jack Plating: Brass
- Outer Contact Plug Plating: Phosphor Bronze
- Insulator: PTFE
- Internal Seal: Silicone
- Centre Contact Plating: Gold
- Outer Contact Jack Plating: Gold
- Outer Contact Plug Plating: Gold
- Pack Size: 1
