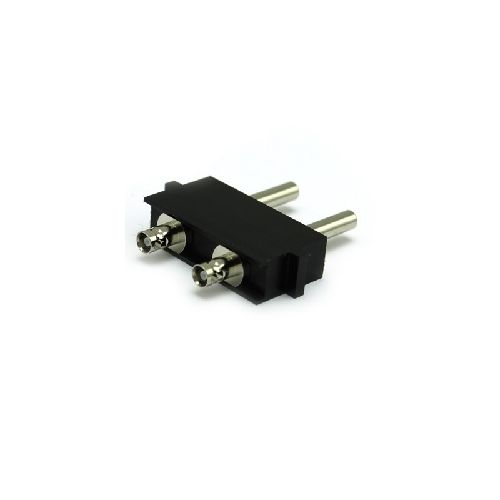

74-6467-544-B126-3 | 746467544B1263 | Jack Adaptor
microMUSA Plug to Micro BNC Jack 12G Adaptor 2 Way Block, Impedance 75 Ohm, Frequency Range Up to 18 GHz
| Complete Electronics Part No. | 746467544B1263 |
|---|---|
| Manufacturers Part No. | 74-6467-544-B126-3 |
Description
Electrical Specification
- Impedance: 75 Ohm
- Frequency Range: Up to 18GHz
- Dielectric Withstand Voltage 1000 Veff
- Insulation Resistance 10000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Mating Cycles - microMusa: 5000
- Mating Cycles - Micro BNC
- Weight: 15.94g
- Mating Force: 10N Max
- Uncoupling Force: 25N Max
- Operating Temperature: -30 to +70°C
- IP Rating (Mated): IP30
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Phosphor Bronze
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
