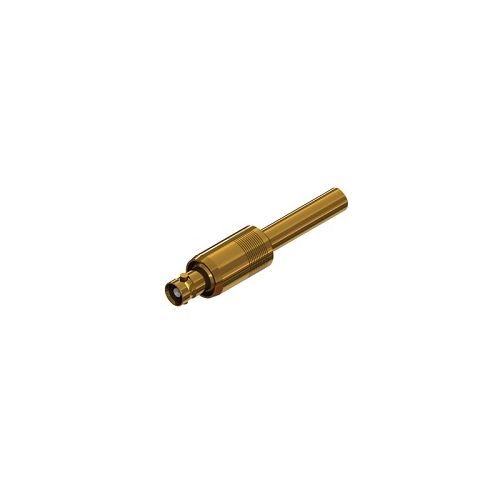

74-6779-511-D126 | 746779511D126 | Micro BNC Jack to Micro Video Plug
Micro BNC Jack to Micro Video Plug Straight Adaptor, This true 75 ohm Adaptor is designed for Full HD 1080p applications and general use up to 12GHz.
| Complete Electronics Part No. | 746779511D126 |
|---|---|
| Manufacturers Part No. | 74-6779-511-D126 |
| Male/Female: | Male and Female |
| Type | Straight |
| Impedance | 75 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 75 Ohm
- Frequency: Up to 12GHz
- Dielectric W/V: 1000 Veff
- Insulation: 10000 M Ohm
Mechanical Specification
- RoHS3 Compliant
- Mating Cycles: 500
- Weight: 6.03g
- Mating Force 10N Max
- Un-Coupling Force: 10N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated):IP64
Materials
- Centre Contact: Beryllium Copper
- Outer Contact Jack Plating: Brass
- Outer Contact Plug Plating: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Jack Plating: Gold
- Pack Size: 1
