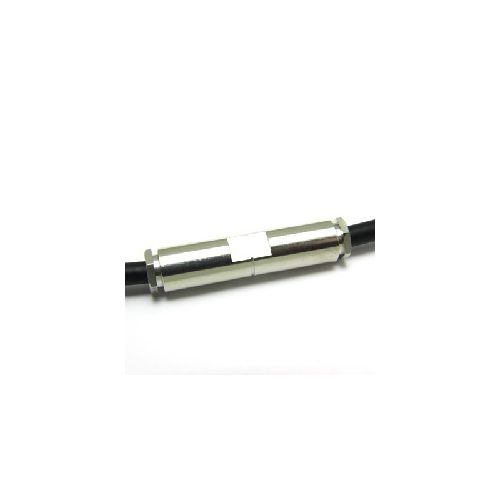

76-570-Q6-AI | 76570Q6AI | Coaxial Cable Joiner
Coaxial cable joiner for making a permanent, LOW LOSS connection of 2 separate cables. For repair and maintenance of damaged cables, sealed to IP68.
| Complete Electronics Part No. | 76570Q6AI |
|---|---|
| Manufacturers Part No. | 76-570-Q6-AI |
| Male/Female: | Jack |
| Type | Straight |
| Impedance | 75 Ohm |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance: 75 Ohm
- Frequency: Up to 4GHz
- Dielectric W/V: 1500 Veff
- Insulation: 5000 M Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Clamp
- Cable Retention: 220N mim
- Weight: 34.58g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP 68 @50mt
Materials
- Centre Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
