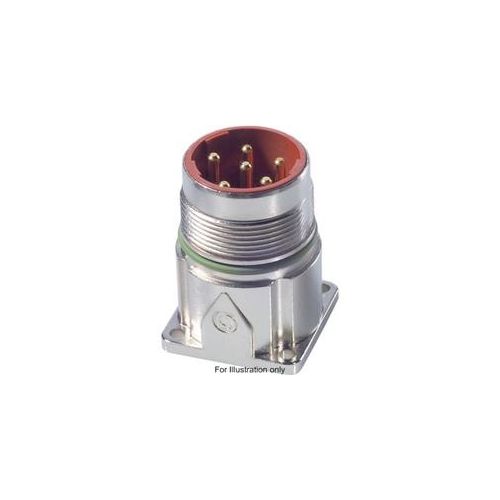

76004000 | Lapp Circular Connector | Epic® Power LS1 A1
Lapp Epic®Power LS1 A1 Front Wall Mount Connector, Number of Contacts: 3+PE+4 (8 Contacts)
| Complete Electronics Part No. | 76004000 |
|---|---|
| Manufacturers Part No. | 76004000 |
| Type: | Cable Coupler with Mounting Flange |
| Lapp Circular Range: | Power LS1 A1 |
| Number of poles | 3+PE+4 (8 contacts) |
| Male/Female: | Male |
| Termination: | Crimp |
| Mounting: | Panel Mount with Flange |
Description
Part Number 76004000
Lapp Epic®Power LS1 A1 Front Wall Mount Connector
- Number of Contacts: 3+PE+4 (8 Contacts)
- Contact Size: 2mm + 1mm
- Rated Voltage: 630V-2mm Contacts, 250V-1mm Contacts
- Rated Current: 25A/26A
- Gender: Male
- Supplied with Contacts
- Crimp Termination: 0.5-2.5mm²
- Housing: Nickel Plated Zinc die casting
- Ingress Protection: IP68
- Temperature Range: -25°C to +125deg;C
- EMC Optimised
- Fastening Type: Ø 2.7mm x4
