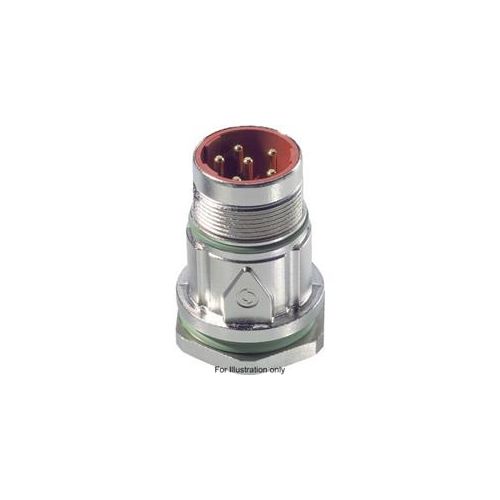

76153000 | Lapp Circular Connector | Epic® Power LS1 G5
Lapp Epic®Power LS1 G5 Through Hole Mount Connector, Number of Contacts: 5+PE (6 Contacts)
| Complete Electronics Part No. | 76153000 |
|---|---|
| Manufacturers Part No. | 76153000 |
| Type: | Panel Mount Connector |
| Lapp Circular Range: | Power LS1 G5 |
| Number of poles | 5+PE |
| Male/Female: | Male |
| Termination: | Crimp |
| Mounting: | Panel Mount |
Description
Part Number 76153000
Lapp Epic®Power LS1 G5 Through Hole Mount Connector
- Number of Contacts: 5+PE (6 Contacts)
- Contact Size: 2mm
- Rated Voltage: 630V
- Rated Current: 25A
- Gender: Male
- Supplied with Contacts
- Crimp Termination: 0.5-2.5mm²
- Housing: Nickel Plated Zinc die casting
- Ingress Protection: IP68
- Temperature Range: -25°C to +125deg;C
- EMC Optimised
- Fastening Type: M25 x 1.5 with nut
