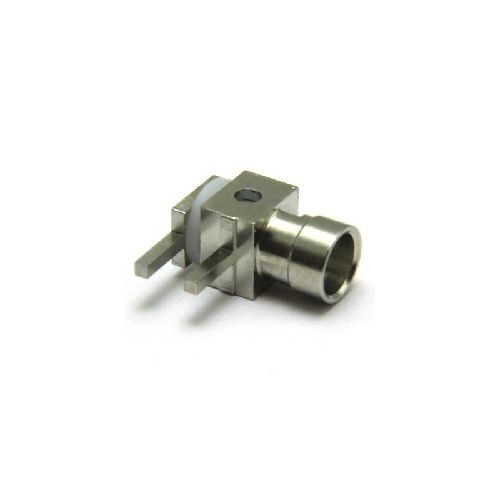

77-495-R3-AD | 77495R3AD | R/A PCB/Solder Cable Termination
Right Angle coaxial Cable Solder termination, for fixing of coaxial cable directly on to a PCB.Centre Contact and braid are soldered, For RG316 cables
| Complete Electronics Part No. | 77495R3AD |
|---|---|
| Manufacturers Part No. | 77-495-R3-AD |
| Male/Female: | Jack |
| Type | Terminator |
| Impedance | 50 Ohm |
| Working Frequency | Up To 3 GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Crimp
- Weight: 0.55g
- Operating Temperature: -55 to +155°C
Materials
- Outer Contact: Brass
- Outer Contact Plating: Gold
