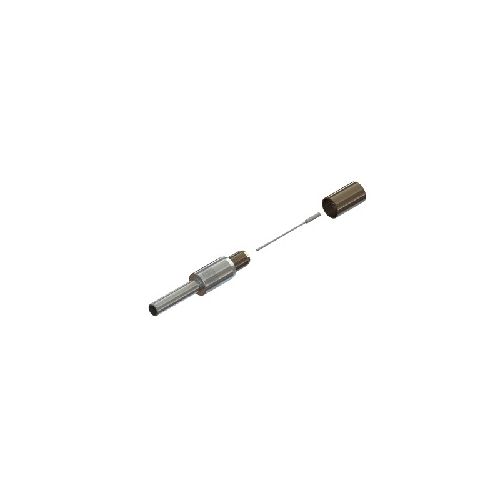

79-005-R126-FB1 | 79005R126FB1 | Micro Video Crimp 12G Plug
Micro Video 12G Crimp /Crimp Plug, Suitable for cable in group FB. The Outer and Centre Contact are White Bronze Plated
| Complete Electronics Part No. | 79005R126FB1 |
|---|---|
| Manufacturers Part No. | 79-005-R126-FB1 |
| Male/Female: | Plug |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 12GHz
- Dielectric Withstand Voltage: 1000Veff
- Insulation Resistance: 10000 M Ohm
- Exceeds the requirements of SMPTE ST 2082-1
- Suitable for composite and component video, 270 Mb/s SDI, uncompressed 1080i or 1080p HD-SDI video and 4K UHD (2160P60) video up to 12GHz
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Weight: 7.29g
- Operating Temperature: -55 to +155°C
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Phosphor Bronze
- Insulator: PTFE
- Centre Contact Plating: White Bronze
- Outer Contact Plating: White Bronze
