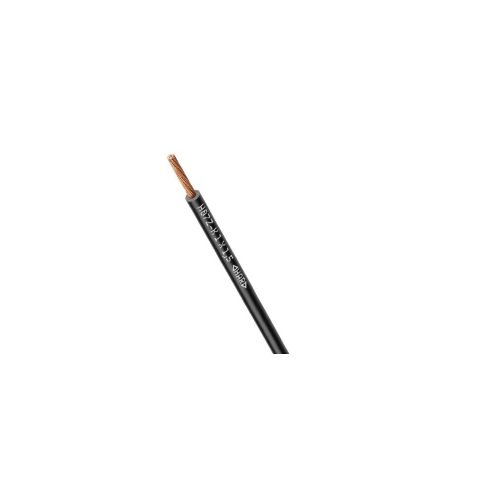

8120011 | LAPP H07V-K 1x1,5 BK | Single Core Cable
8120011, Single Core Cable, Flame Retardant power and control cable, Conductor Cross Section: 1.5mm², Cable Outer Diameter: 2.8 - 3.4mm, Black
| Complete Electronics Part No. | 8120011 |
|---|---|
| Manufacturers Part No. | 8120011 |
| Control Cabinet Series | H07V-K VDE |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 1.5mm² |
| Rated Voltage: | 450 / 750 V |
| Core Colour: | Black |
Description
8120011, Single Core Cable
REPLACED, PLEASE CLICK HERE
Flame Retardant power and control cable
- Conductor Cross Section: 1.5mm²
- Cable Outer Diameter: 2.8 - 3.4mm
- Core Colour: Black
- VDE Power and Control Cable acc. EN 50525-2-31
- Flame-retardant according IEC 60332-1-2
- Fine-wired copper conductor according to VDE 0295 Class 5
- Core insulation: Based on PVC
- Nominal voltage: U0/U: 450/750 V
- Current rating: VDE 0298 Part 4 EN 50565-1/ VDE 0298-565-1
- Minimum bending radius: 4x Outer Diameter (OD)
- Temperature range, Fixed Install: : -40°C to +80°C
- LAPP Part Number: 8120011
- Cable Length: 24000M
