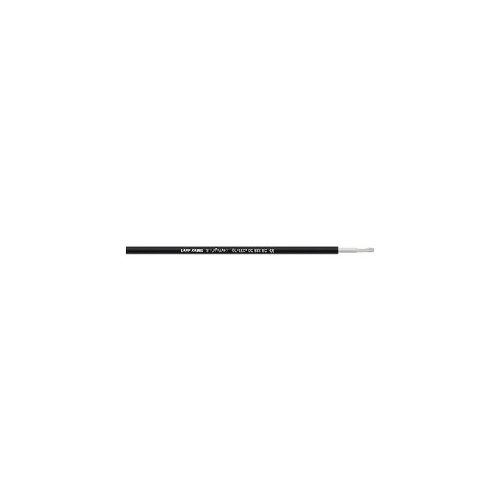

85153001 | OLFLEX DC ESS SC | Designed for ESS
Number of Cores 1 x 1.5 mm², Nominal Voltage:1500V, Suitable For Outdoor Applications
| Complete Electronics Part No. | 85153001 |
|---|---|
| Manufacturers Part No. | 85153001 |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 1.5mm² |
Description
Cable best designed for ESS
Highly flame retardant DC power cable
- Part Number: 85153001
- Number of Cores 1 x 1.5 mm²
- Nominal Voltage: 1500V
- Outer Diameter: 4.6 mm
- Minimum Bending Radius - Fixed: 5 x Outer Diameter
- Occasional Flexing 15 x Outer Diameter
- Weight (Kg/Km): 20
- Cable Colour: Black
- Temperature range: Fixed installation: -40°C to +120 °C
Product features
- Internal and External wiring within Energy Storage System(ESS)
- Easy installation due to flexible design
- Conductor: Fine wire strands of tinned copper
- Core insulation: Halogen-free flame retardant cross-linked polyolefin compound
- Outer sheath: Special halogen-free flame retardant cross-linked polyolefin compound
- For outdoor applications
Approvals
- Fire behaviour: Halogen-free (IEC 60754-1)
- No corrosive gases (IEC 60754-2)
- Low smoke density (IEC 61034-2)
- Low toxicity (EN 50305)
- Flame retardant (IEC 60332-1-2)
- No flame propagation according to IEC 60332-3-24, IEC 60332-3-25
- Oil resistant acc. IEC 60227-1 (ST9) and EN 50264-1 (EM 104)
- Ozone resistant according to EN 50396
- UV resistant according to ISO 4892-2
- Cable design according to EN 50618
