8716040S | OLFLEX CHAIN TM CY 4 G 1,5 | Various Applications
Highly flexible, Screened Control cable, No of Conductors: 4, Conductor Cross section: 1.5mm², Cable Outer Diameter: 10.2mm, With GN-YE protective conductor
| Complete Electronics Part No. | 8716040S |
|---|---|
| Manufacturers Part No. | 8716040S |
| Series: | OLFLEX CHAIN TM CY |
| Number of Conductors: | 4 |
| Conductor Cross Section: | 1.5mm² |
| Rated Voltage: | 600V |
| Cable Type: | Cold Resistant |
| Shielding: | Shielded / Screened |
| Protective Conductor: | Yes |
| Cable Jacket: | Thermoplastic Polymer |
| Cable Length: | 50 Metres |
Description

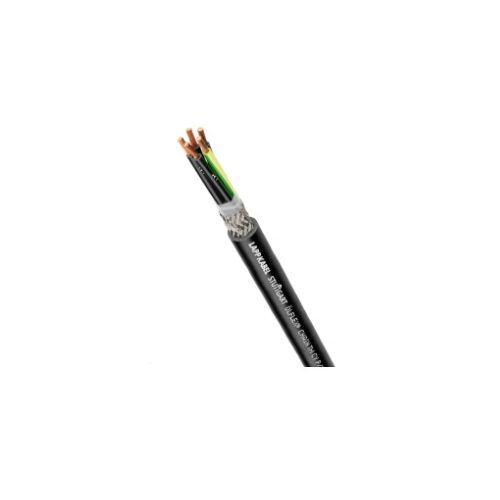

8716040S | ÖLFLEX® CHAIN TM CY 4G1.5
Highly flexible, Screened, multi core control cable
Number of Conductors: 4
Conductor Cross section: 1.5mm²
Cable Outer Diameter: 10.2mm
With GN-YE protective conductor
Conductor material: Bare Copper
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Shield: Tin-plated copper braiding (85% coverage)
Core insulation: Polyvinylchloride (PVC) / Nylon
Outer Sheath material: Polyvinylchloride (PVC) / Nylon
Outer Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Shield: Tin-plated copper braiding (85% coverage)
Core insulation: Polyvinylchloride (PVC) / Nylon
Outer Sheath material: Polyvinylchloride (PVC) / Nylon
Outer Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Oil-resistant - Yes acc. to DIN EN 50363-4-1 (TM5)
Highly Chemical resistant - Yes
UV-resistant - Yes (UL sunlight resistant)
Halogen Free - No
Flame retardant - Yes (CSA FT4, UL Vertical-Tray Flame Test)
Weather resistant - Yes
PWIS-free - No
Highly Chemical resistant - Yes
UV-resistant - Yes (UL sunlight resistant)
Halogen Free - No
Flame retardant - Yes (CSA FT4, UL Vertical-Tray Flame Test)
Weather resistant - Yes
PWIS-free - No
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Operating voltage of 600V rms according to UL /CSA TC
Temperature, fixed installation: -40°C to 105°C according to IEC
Temperature, occasionally moved: -25°C to 90°C according to IEC
Temperature, dynamic continuously flexing: -25°C to 90°C according to IEC
Maximum bending cycles: 7,000,000
Operating voltage of 600V rms according to UL /CSA TC
Temperature, fixed installation: -40°C to 105°C according to IEC
Temperature, occasionally moved: -25°C to 90°C according to IEC
Temperature, dynamic continuously flexing: -25°C to 90°C according to IEC
Maximum bending cycles: 7,000,000
The cable design allows flexible, continuously flexing
Suitable for medium mechanical stress
Outer sheath made of specially designed thermoplastic polymer
Can be used in dry, wet and especially in harsh and oily environments
Suitable for outdoor use
Suitable for medium mechanical stress
Outer sheath made of specially designed thermoplastic polymer
Can be used in dry, wet and especially in harsh and oily environments
Suitable for outdoor use
Listed as a tray cable for exposed run (TC-ER) and machine tool wire (MTW) according to UL
For fixed, open installation in cable trays without a protective cable conduit
Also suitable for torsion applications in wind turbines
Ideal protection against electromagnetic interference thanks to copper screening
CE marked, UKCA marked, EAC certified, UL recognised
For fixed, open installation in cable trays without a protective cable conduit
Also suitable for torsion applications in wind turbines
Ideal protection against electromagnetic interference thanks to copper screening
CE marked, UKCA marked, EAC certified, UL recognised
Cable Length: 50M
Lapp part number: 8716040S
