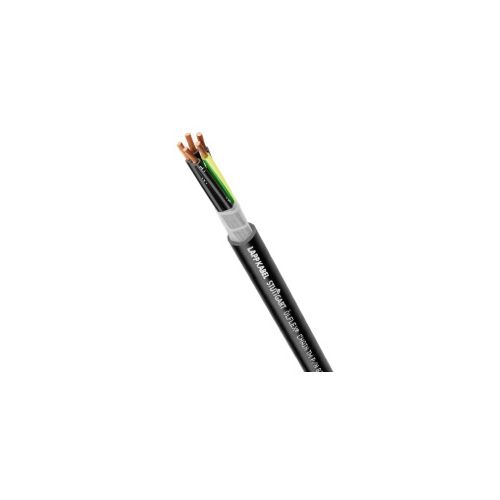

8716180 | OLFLEX CHAIN TM 18G1,5 | Various Applications
Highly flexible Control cable , Number of Conductors: 18, Conductor Cross section: 1.5mm², Cable Outer Diameter: 17.2mm, With GN-YE protective conductor
| Complete Electronics Part No. | 8716180 |
|---|---|
| Manufacturers Part No. | 8716180 |
| Series: | OLFLEX CHAIN TM |
| Number of Conductors: | 18 |
| Conductor Cross Section: | 1.5mm² |
| Rated Voltage: | 600V |
| Cable Type: | Cold Resistant |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Cable Jacket: | Thermoplastic Polymer |
| Cable Length: | 500 Metres |
Description
8716180 | ÖLFLEX® CHAIN TM 18G1.5
Highly flexible multi core control cable
Number of Conductors: 18
Conductor Cross section: 1.5mm²
Cable Outer Diameter: 17.2mm
With GN-YE protective conductor
Conductor material: Bare Copper
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polyvinylchloride (PVC) / Nylon
Outer Sheath material: Polyvinylchloride (PVC) / Nylon
Outer Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Core colour code: Black with white numbers
Conductor design: IEC 60228 class 6: extra-fine wire
Core insulation: Polyvinylchloride (PVC) / Nylon
Outer Sheath material: Polyvinylchloride (PVC) / Nylon
Outer Sheath colour: Black (RAL 9005)
Wrapping over stranding: Fleece wrapping
Oil-resistant - Yes acc. to DIN EN 50363-4-1 (TM5)
Highly Chemical resistant - Yes
UV-resistant - Yes (UL sunlight resistant)
Halogen Free - No
Flame retardant - Yes (CSA FT4, UL Vertical-Tray Flame Test)
Weather resistant - Yes
PWIS-free - No
Highly Chemical resistant - Yes
UV-resistant - Yes (UL sunlight resistant)
Halogen Free - No
Flame retardant - Yes (CSA FT4, UL Vertical-Tray Flame Test)
Weather resistant - Yes
PWIS-free - No
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Operating voltage of 600V rms according to UL TC
Temperature, fixed installation: -40°C to 105°C according to IEC
Temperature, occasionally moved: -25°C to 90°C according to IEC
Temperature, dynamic continuously flexing: -25°C to 90°C according to IEC
Maximum bending cycles: 7,000,000
Operating voltage of 600V rms according to UL TC
Temperature, fixed installation: -40°C to 105°C according to IEC
Temperature, occasionally moved: -25°C to 90°C according to IEC
Temperature, dynamic continuously flexing: -25°C to 90°C according to IEC
Maximum bending cycles: 7,000,000
The cable design allows flexible, continuously flexing
Suitable for medium mechanical stress
Outer sheath made of specially designed thermoplastic polymer
Can be used in dry, wet and especially in harsh and oily environments
Suitable for outdoor use
Suitable for medium mechanical stress
Outer sheath made of specially designed thermoplastic polymer
Can be used in dry, wet and especially in harsh and oily environments
Suitable for outdoor use
Listed as a tray cable for exposed run (TC-ER) and machine tool wire (MTW) according to UL
For fixed, open installation in cable trays without a protective cable conduit
Also suitable for torsion applications in wind turbines
CE marked, UKCA marked, EAC certified, UL recognised
For fixed, open installation in cable trays without a protective cable conduit
Also suitable for torsion applications in wind turbines
CE marked, UKCA marked, EAC certified, UL recognised
Cable Length: 500M
Lapp part number: 8716180
