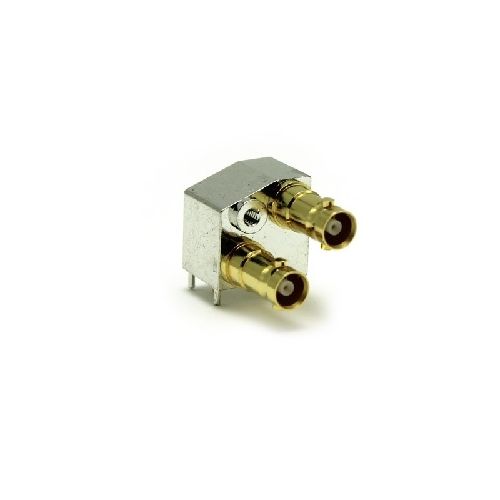

92-67-468-3 | 92674683 | Micro BNC R/A 2 way Jacks
Micro BNC 75 Ohm 2 Way Right Angle PCB Mount Bulkhead Jacks, Jacks held to the bulkhead with a countersunk screw, Gold Plated Interface Body
| Complete Electronics Part No. | 92674683 |
|---|---|
| Manufacturers Part No. | 92-67-468-3 |
| Male/Female: | Jack |
| Type | Panel / Bulkhead Mount |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 12GHz
- Dielectric Withstand Voltage 1000 Veff
- Insulation Resistance 10000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Solder
- Mating Cycles: 500
- Contact Retention: 10N min
- Weight: 14.48g
- Mating Force: 10N max
- Un-coupling Force: 10N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating Gold
- Pack Size 1
