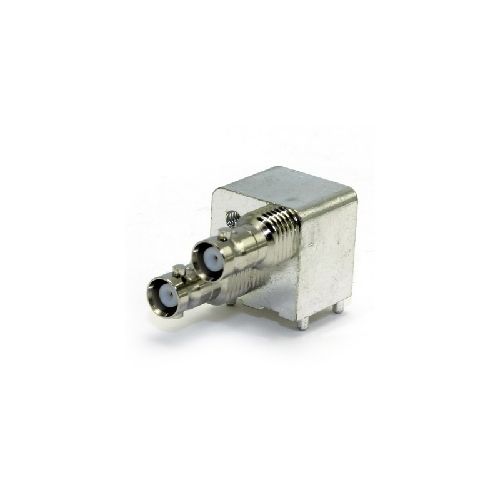

92-67-488-1-B3 | 92674881B3 | Micro BNC R/A 2 way Bulkhead PCB Jack
50 ohm 2 port Off Set Micro BNC PCB jack. Right angle mount to PCB with through hole solder fixing. Centre contact is gold plated,
| Complete Electronics Part No. | 92674881B3 |
|---|---|
| Manufacturers Part No. | 92-67-488-1-B3 |
| Type | PCB Mounting |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance 50 Ohm
- Frequency Range Up to 6GHz
- Dielectric Withstand Voltage 1000 Veff
- Insulation Resistance 10000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Outer Contact Termination: Clamp
- Mating Cycles: 500
- Contact Retention: 20N min
- Weight: 14.48g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
