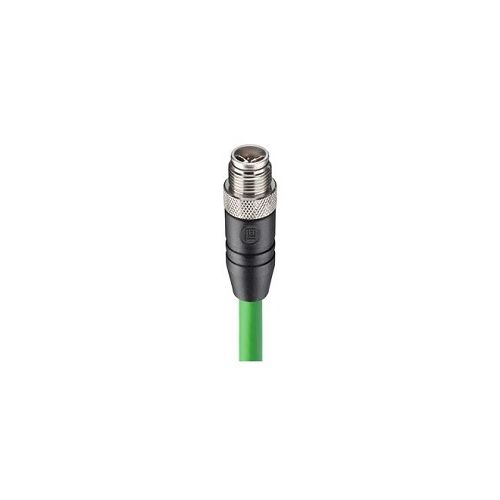

934809017 | RSTS 8X-669/2 M| Network Cable
Gigabit Ethernet Cat6 Data Single-Ended Cordset: M12 Standard, male, straight, 8-pin, X-coded, shielded, 50 V AC / 60 V DC, 0.5 A; PUR green cable
| Complete Electronics Part No. | 934809017 |
|---|---|
| Manufacturers Part No. | 934809017 |
| Category | CAT 6 |
| Cable Jacket: | PUR |
Description
RSTS 8X-669/2 M
Gigabit Ethernet Cat.6 Cordset
- Single-Ended Cordset
- M12 Standard, male,straight, 8-pin, X-coded
- Shielded
- 8-wires, 4x2x0.14 mm²
- Operating Voltages: 50 V AC / 60 V DC, 0.5 A
- Outer sheath colour Green (similar to RAL 6018)
- Operating Temperature: - 40 °C - + 80°C
- Ingress Protection: IP65, IP67
- Flammability Class (Molded Body): UL 94 V-0
- Part Number: 934809017

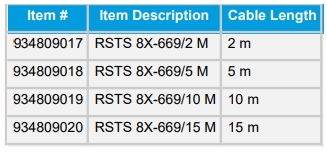

- Cable Length: 2 M (other lengths avaiable, see below table)
