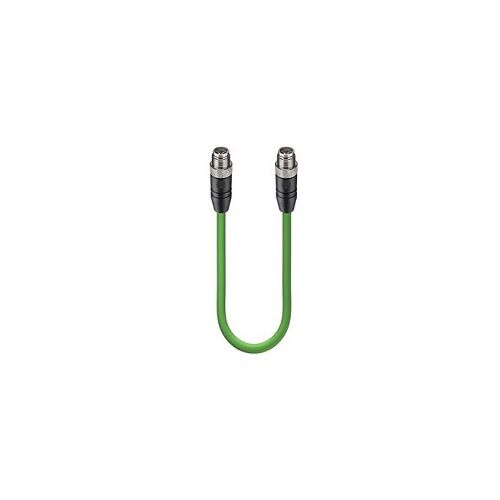

934809021 | RSTS 8X-RSTS 8X-669/2 M | Network Cable
Gigabit Ethernet Cat6 Data Double-Ended Cordset: Male straight X-coded, black M12 Standard to male straight X-coded black M12 Standard, shielded
| Complete Electronics Part No. | 934809021 |
|---|---|
| Manufacturers Part No. | 934809021 |
| Category | CAT 6 |
| Cable Jacket: | PUR |
Description
RSTS 8X-RSTS 8X-669/2 M
Gigabit Ethernet Cat.6 Cordset
- Double-Ended Cordset
- Male X-coded black M12 Standard to male X-coded black M12 Standard
- Shielded
- 8-wires, 4x2x0.14 mm²
- Operating Voltages: 50 V AC / 60 V DC, 0.5 A
- Outer sheath colour Green (similar to RAL 6018)
- Cable Jacket Material: PUR
- Ambient Temperature (Fixed Installation): - 40 °C - + 80 °C
- Ambient Temperature (Flex Installation): - 10 °C - + 70 °C
- Ingress Protection: IP65, IP67
- Flammability Class (Molded Body): UL 94 V-0
- Part Number: 934809021

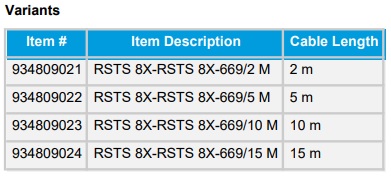

- Cable Length: 2 M (other lengths avaiable, see below table)
