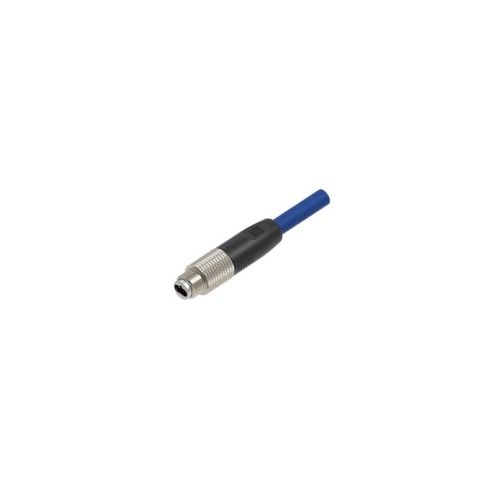

935100015 | RSMGVS-8M-1014/1 M | SPE Cordset
SPE single ended cordset: M8 male straight 6P-M8 Code, IP65/67, XLPE, Cable Length 1 metre
| Complete Electronics Part No. | 935100015 |
|---|---|
| Manufacturers Part No. | 935100015 |
| Category | M8 (T1 Industrial) |
| Style | Plug - Free Cable |
| Cable Length: | 1 Metre |
Description
SPE Cordset M8 (T1 Industrial)
CAT B (1 Gbps)
- M8 male straight 6P-M8 Code
- Rated Voltage: 60 V DC
- Rated Current: 4A
- Connector 1: Plug straight M8
- Connector 2: Free cable end
- Cable Type: Single Pair Ethernet
- External Cable Diameter: 4.80 mm ±0.2 mm
- Cable Length: 1 metre
- Outer Sheath Colour: Black
- Outer Sheath Material: XLPE
- Single wire colour: White, Blue
- Shielded
- Foil Shield: Al-myler wrapping foil
- UL Cable Type: AWM: 22303
- Flammability Class (Cable Jacket): FT-2
- Operating Tempetature: -40°C ... +80°C
- Ingress Protection: IP65 / IP67
