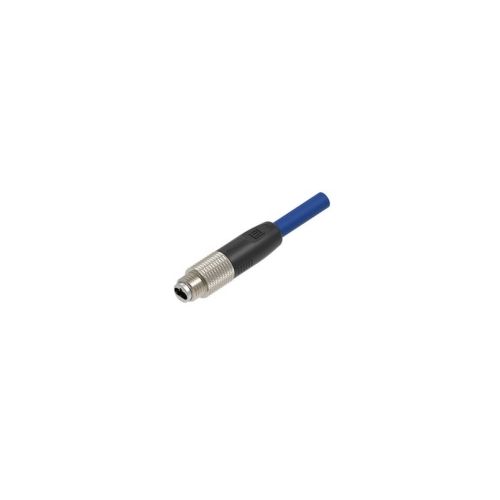

935100029 | RSMGVS-8M-999/15 M | SPE Cordset
Plug straight SPE M8, IP65 / IP67, on Free Cable end, cable length: 15 metres, 1 Gbps, Shielded, Operating Voltage: 50 V AC - 60 V DC, PVC
| Complete Electronics Part No. | 935100029 |
|---|---|
| Manufacturers Part No. | 935100029 |
| Category | M8 (T1 Industrial) |
| Style | Plug - Free Cable |
| Cable Length: | 15 Metres |
Description
SPE Cordset M8 (T1 Industrial)
CAT B (1 Gbps)
- Male, Screw locking
- Single Pair Ethernet,1 Gbps
- Rated Voltage: 60 V DC
- Rated Current: 4A
- Connector 1: Plug straight M8
- Connector 2: Cable Free end
- Cable Type: Single Pair Ethernet
- External Cable Diameter: 5.10 mm ±0.2 mm
- Cable Length: 15 metres
- Outer Sheath Colour: Black
- Outer Sheath Material: PVC
- Single wire colour: White, Blue
- Shielded
- Foil Shield: Al-myler wrapping foil
- UL Cable Type: AWM: 2095
- Flammability Class (Cable Jacket): FT-2
- Operating Tempetature: -40°C ... +80°C
- Ingress Protection: IP65 / IP67
