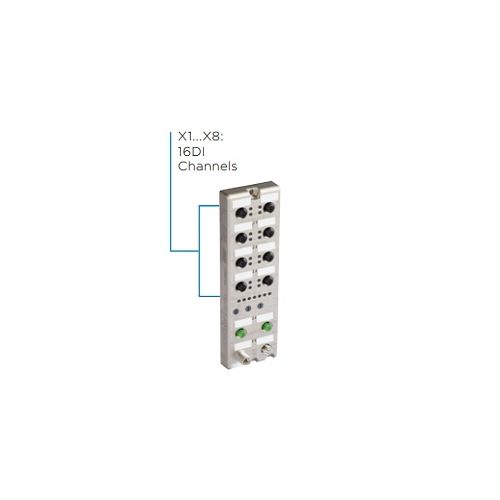

935706001| LioN-X 16DI Digital with Multiprotocol
16 digital input channels, metal housing IP65, IP67, IP69K, 60mm, 8 x M12 A-coded I/O connection 5-poles
| Complete Electronics Part No. | 935706001 |
|---|---|
| Manufacturers Part No. | 935706001 |
Description
0980 XSL 3901-121-007D-01F
16 digital input- channels (Multiprotocol)
- M12, 4-poles, D-coded
- Connection Module Supply Voltage: M12 Power, 5-poles, L-coded
- Module Supply Voltage (Nominal): 24 V DC (SELV/PELV)
- Module Supply Voltage (Range): 18 V DC to 30 V DC
- Current Consumption (typ.): 160 mA (at 24 V DC)
- Current Carrying Capacity of Connector: max.16A
- Reverse Polarity Protection
- Status indicator (Sensor Supply) Green LED
- Diagnostic indicator: Red LED
- Operating Temperature: -40°C to 70°C
- Ingress Protection: IP65, IP67, IP69K
- Housing Material: Metal, zinc die-cast
- (W x H x D) 60mm x 31mm x 200mm
- Weight: 480 g
