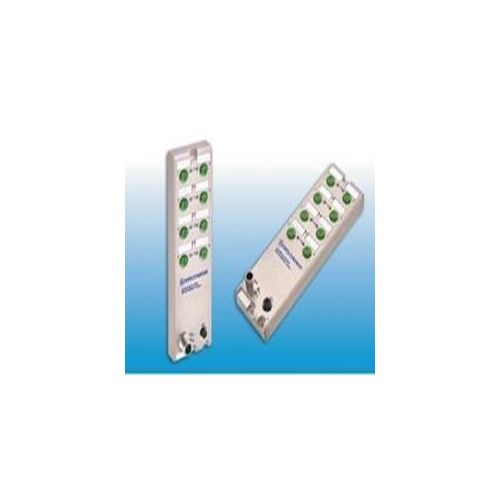

942 151-001 | 942151001 | Octopus 8TX-PoE-EEC

Unmanaged switch 8 Ports, M12 D coding, 4 Poles PoE
More Information
Complete Electronics Part No 942150001
Manufacturers Part No. 942 150-001
Ethernet Product Type Unmanaged Switch
Total 10/100 Base (M12 D Coding) 8
Number Of POE Ports 7
Operating Voltage DC 24 V
Mounting Wall
IP Rating IP65 / 67
Description

942151001

Octopus 8TX-PoE-EEC - 8 Fast Ethernet Ports

  •  Store-and-forward-switching
  • Ethernet (10 Mbit/s) and Fast-Ethernet (100 Mbit/s
  • 1.5 MB packet buffer
  • 16k MAC address table
  • 8 x 10/100 BASE-TX
  • 7 x PoE Ports
  • M12 D-coding
  • 4-pole
  • Power Supply/Signaling Contact:  1 x M12 5-pin connector, A-coding/no signal contact
  • USB Interface: 1 x M12 5-pin socket, A-coding
  • Twisted Pair (TP) 0 to 100 m
  • Line-/Star Topology: Any
  • Operating Voltage 9 to 32 V DC
  • Current Consumption at 24 V DC: 175 mA
  • Diagnostics: LEDs (power, link status, data)
  • Operation Temperature -40 ºC to +70 ºC
  • Wall mounting
  • Weight 470 g
  • IP67/IP65
