942 999-938 |942999938 | BN48-0010O6O6TCMSB
BN48, Gigabit Managed 10-port Ethernet Switch. 8 x10/100/1000 Mbit/s PoE ports and 2 x 1000 Mbit/s SFP slots, Configuration: RS-232, 115200bps-8-N-1
| Complete Electronics Part No. | 942999938 |
|---|---|
| Manufacturers Part No. | 942 999-938 |
| Ethernet Product Type: | Managed Switch |
| Managed / Unmanaged: | Managed |
| Total 100/1000 (FX) Ports: | 2 |
| Total 10/100/1000 (RJ45) Ports: | 8 |
| Number Of PoE Ports: | 8 |
| Total Ethernet Ports: | 10 |
| FX (Optical) Connector Type: | SFP |
| Operating Voltage: | DC 48 V |
| Mounting: | DIN Rail |
| IP Rating: | IP30 |
Description

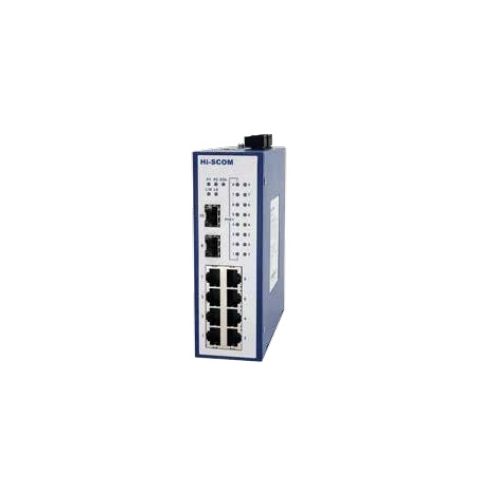

BN48-0010O6O6TCMSB, Gigabit PoE Switch
10-port Ethernet switch
- Managed
- 8 x 10/100/1000 Mbit/s PoE (IEEE 802.3af/at) ports
- 2 x 1000 Mbit/s SFP ports
- 4 Mbit/s memory
- Total PoE Power Budget: Output: 240 w (Max)
- Operating Voltage: 48 V DC
- Power Supply: 1 x 4 Pin
- Operating Temperature: -40°C up to +70°C
- Ingress Protection: IP30
- Conformal Coating: Yes (dependent on device variant)
- Dimensions (W*H*D): 64x144x130mm
- Mounting: DIN Rail
- Warranty: 2 Years
Accessories to order separately
- Gigabit Ethernet SFP modules
- Industrial Hivision Network Management software
