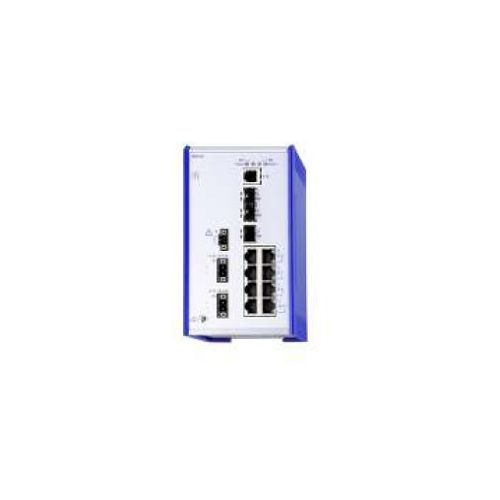

942053014 | DIN Rail Switch | RSP30-08033O6ZT-SK9V9HSE2S
Managed Industrial Switch for DIN Rail, 4 x 10/100BASE TX / RJ45, 4 x SFP slots (100 Mbit/s), 3 x SFP slot (100/1000 Mbit/s), 11 Ports in total
| Complete Electronics Part No. | 942053014 |
|---|---|
| Manufacturers Part No. | 942 053-014 |
Description
RSP30-08033O6ZT-SK9V9HSE2S
Hardened, Managed Industrial DIN rail switch
Fast and Gigabit speed options
11 Ports in total
4 x 10/100BASE TX / RJ45
4 x SFP slots (100 Mbit/s)
3 x SFP slot (100/1000 Mbit/s)
V.24 interface 1 x RJ11 socket
1 x SD card slot to connect the auto configuration adapter ACA31
Operating Voltage 1 x 60 - 250 VDC (48V - 320 VDC) and 110 - 230 VAC (88 - 265 VAC)
Operating temperature 0°C to +60°C
Dimensions (WxHxD) 90 mm x 164 mm x 120 mm
Weight 1300 g
Mounting: DIN rail
Protection class IP20
Fanless design
Part Number: 942053014
