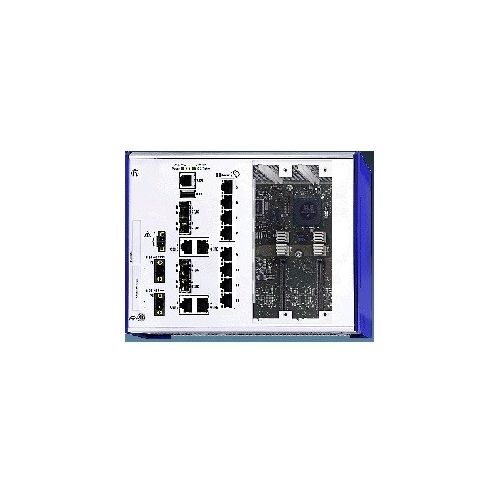

942084006 | Rail Switch Power Enhanced
Managed Fast/Gigabit Industrial Ethernet Switch, 12 ports in total
| Complete Electronics Part No. | 942084006 |
|---|---|
| Manufacturers Part No. | 942084006 |
| Ethernet Product Type: | Managed Switch |
Description
RSPE37-8TX/4C-EEC-3S
Managed Fast/Gigabit Industrial Ethernet Switch
4 x Fast/Gigbabit Ethernet Combo ports
8 x Fast Ethernet TX ports
Expandable with two slots for media modules with 8 Fast Ethernet ports each
1 x SD card slot to connect the auto configuration adapter ACA31
1 x USB to connect auto-configuration adapter ACA22-USB
Operating Voltage 2 x 47-57 V DC (POE) or 53-57 V DC (POE+)
Cost-effective powering of devices via PoE/PoE+
Comprehensive management, diagnosis and filter functions
Broad immunity to electrostatic discharges plus high vibration resistance
Operating temperature -40°C to +70°C
Protection Class IP20
Compact stainless steel housing for DIN rail mounting
Dimensions (WxHxD) 217 mm x 164 mm x 120 mm
Weight 2500 g
Part Number: 942084006
Accessories:
Rail Power Supply RPS 80/120
