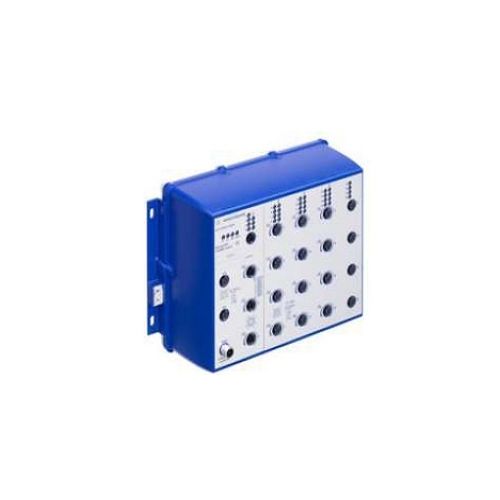

942133013 | OCTOPUS 20FE-LV
OCTOPUS IP67/IP65 Industrial Ethernet Switch, 20 ports in total
| Complete Electronics Part No. | 942133013 |
|---|---|
| Manufacturers Part No. | 942133013 |
| Total Ethernet Ports: | 20 |
| Operating Voltage: | 2 x (48 VDC (PoE)/ 54 VDC (PoE+)) |
| Mounting: | Wall |
| IP Rating: | IP65 / 67 |
Description
OCTOPUS Managed Ethernet Switch
IP65 / IP67 switch
In accordance with IEEE 802.3
Store-and-forward-switching
HiOS Layer 2 Standard
TP-cable
20 ports in total
Uplink ports 10/100/BASE-TX
M12 "D"-coded, 4-pins
Local ports 10/100BASE-TX M12 "D"-coded, 4-pin
V.24 interface 1 x M12 4-pin socket, A coding
USB interface 1 x M12 5-pin socket, A coding
Operating Voltage 2 x 24 VDC (16.8 .. 30 VDC)
Operating temperature -40-+70 °C
Dimensions (WxHxD) 261 mm x 186 mm x 95 mm
Weight 3.5 kg
Mounting: Wall mounting
Part Number942133013
