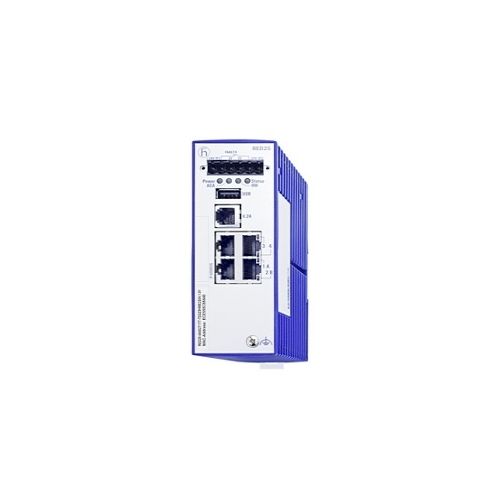

942137002 | RED25 Fast Ethernet Switch

Availability: Delivery 14-21 days
Managed, Industrial Switch DIN Rail Switch, fanless design , 4 x 10/100Mbit/s TX Ports
More Information
Complete Electronics Part No 942137002
Manufacturers Part No. 942137002
Ethernet Product Type Managed Switch
Description

RED25-4TX

Fast Ethernet Entry Level Switch

  • 4 ports in total
  • 4x 10/100 Mbit/s Twisted Pair / RJ45
  • HiOS Layer 2 Standard
  • V.24 interface 1 x RJ11 socket
  • 1 x USB to connect auto-configuration adapter ACA22-USB
  • Operating Voltage 12-48 VDC (nominal), 9.6-60 VDC (range) and 24 VAC (nominal), 18-30 VAC (range); (redundant)
  • Operating temperature -40-+60 °C
  • Dimensions (WxHxD) 47 mm x 131 mm x 111 mm
  • Weight 300 g
  • Mounting DIN rail
  • Protection class IP20
  • Approvals: CE, FCC, EN61131, UL 61010-2-210
  • Product Code: RED25-04002T1TT-TDDY9HPE2SXX.X.XX
