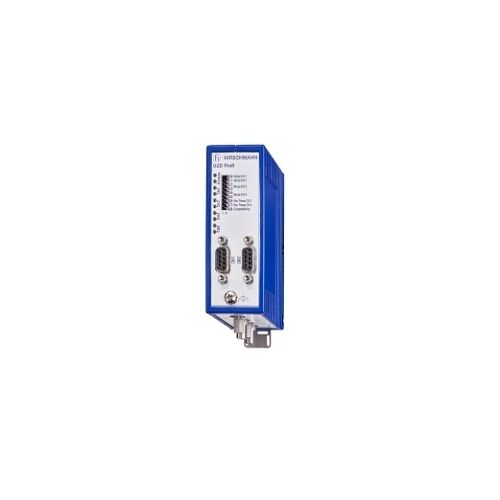

942148003 | OZD Profi 12M G22 | Industrial Ethernet
For PROFIBUS-field bus networks, Repeater function, For quartz glass FO, For Ex-zone 2
(Class 1, Div. 2)
| Complete Electronics Part No. | 942148003 |
|---|---|
| Manufacturers Part No. | 942 148-003 |
| Ethernet Product Type: | Interface Converter |
Description
Interface converter electrical/optical
For PROFIBUS-field bus networks
- Repeater function
- For quartz glass FO
- For Ex-zone 2 (Class 1, Div. 2)
- Multi Mode Fibre
- Operating Voltage: 18 ... 32 VDC, typ. 24 VDC
- Power consumption: 4.5 W
- Redundancy functions: HIPER-Ring (ring structure), redundant 24 V infeed
- Operating Temperature: 0°C to +60°C
- Dimensions (WxHxD): 40 x 140 x 77.5 mm
- Housing Material: die-cast zinc
- Hazardous locations: ATEX Zone 2
- Mounting: DIN rail or mounting plate
