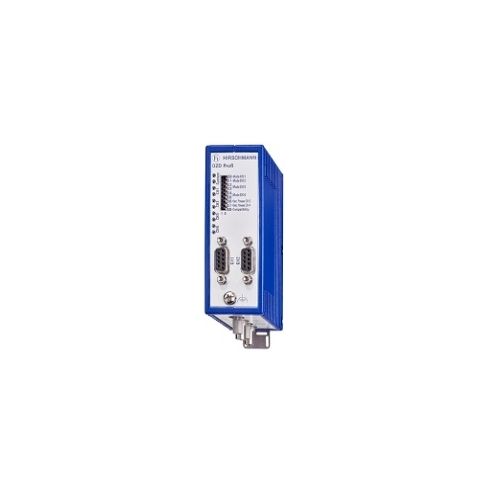

942148106 | OZD Profi 12M G22-1300 EEC | Industrial Ethernet
For PROFIBUS-field bus networks, Repeater function, For quartz glass FO, For Ex-zone 2
(Class 1, Div. 2)
| Complete Electronics Part No. | 942148106 |
|---|---|
| Manufacturers Part No. | 942 148-106 |
| Ethernet Product Type: | Interface Converter |
Description
Interface converter electrical/optical
For PROFIBUS-field bus networks
Repeater function
For quartz glass FO
For Ex-zone 2 (Class 1, Div. 2)
Long Haul Version
Port type and quantity 2 x optical: 4 sockets BFOC 2.5 (STR) 2 x electrical: Sub-D 9-pin, female
Pin assignment according to EN 50170 part 3
Operating Voltage: 18 ... 32 VDC, typ. 24 VDC
Operating Temperature: -20°C to +60°C
Dimensions (WxHxD): 40 x 140 x 77.5 mm
Housing Material: die-cast zinc
Ingress Protection IP41
Mounting: DIN rail or mounting plate
Part Number: 942148106
