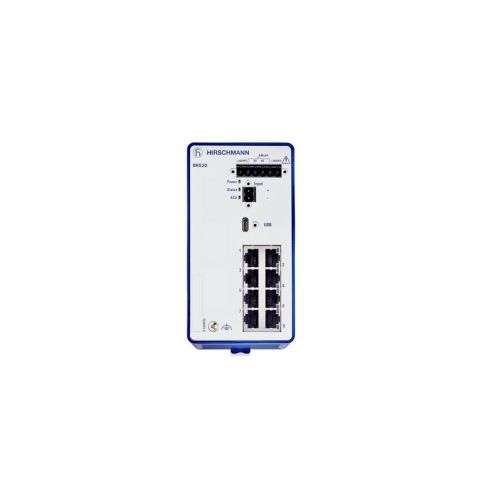

942170002 | BRS20-8TX | Bobcat Ethernet Switch
Bobcat Managed Industrial Switch for DIN Rail, 8 Ports in total: 8x 10/100BASE TX / RJ45, Power supply/signaling contact: 1 x plug-in terminal block
| Complete Electronics Part No. | 942170002 |
|---|---|
| Manufacturers Part No. | 942170002 |
| Ethernet Product Type: | BRS20 |
| Total 10/100 (RJ45) Ports: | 8 |
| Total Ethernet Ports: | 8 |
Description
Bobcat Managed Industrial Switch for DIN Rail
8 Ports in total: 8x 10/100BASE TX / RJ45
Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
Digital Input: 1 x plug-in terminal block, 2-pin
Operating voltage 2 x 12 V DC ... 24 VDC
Operating temperature: 0°C to +60°C
Dimensions 73 mm x 138 mm x 115 mm
Weight: 420 g
Housing: Plastic
Mounting: DIN Rail
Protection class: IP30
Approvals: CE, FCC, EN61131, EN62368-1
Part Number: 942170002
