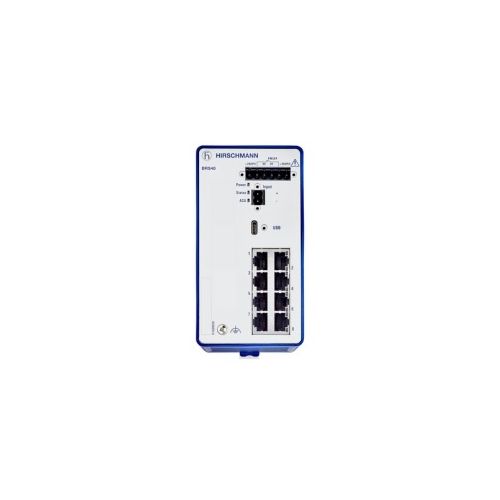

942170008 | BRS40-8TX | Bobcat Ethernet Switch
Bobcat Managed Industrial Switch for DIN Rail, 8 Ports in total: 8x 10/100/1000BASE TX / RJ45, Real-time communication using TSN,
| Complete Electronics Part No. | 942170008 |
|---|---|
| Manufacturers Part No. | 942 170-008 |
| Ethernet Product Type: | BRS40 |
| Total 10/100/1000 (RJ45) Ports: | 8 |
| Total Ethernet Ports: | 8 |
| Operating Voltage: | DC 12V / 24V |
| Mounting: | DIN Rail / Wall |
| IP Rating: | IP30 |
Description
Bobcat Managed Industrial Switch for DIN Rail
8 Ports in total: 8x 10/100/1000BASE TX / RJ45
Real-time communication using TSN.
Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
Digital Input: 1 x plug-in terminal block, 2-pin
Operating voltage 2 x 12 V DC ... 24 VDC
Buffered Real Time Clock
SNTP Client, SNTP Server
Port Power Down
Operating temperature: 0-+60°C
Mounting: DIN Rail
Protection class: IP30
Approvals: CE, FCC, EN61131, EN62368-1
Part Number: 942170008
