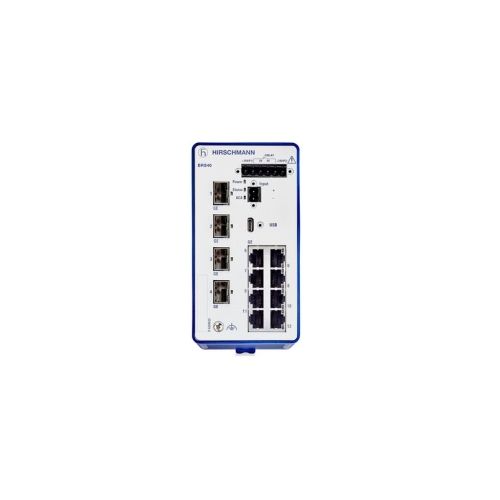

942170009 | BRS40-8TX/4SFP | Bobcat Ethernet Switch
Bobcat Managed Industrial Switch for DIN Rail, Real-time communication using TSN., 12 Ports in total, Buffered Real Time Clock
| Complete Electronics Part No. | 942170009 |
|---|---|
| Manufacturers Part No. | 942 170-009 |
| Ethernet Product Type: | BRS40 |
| Total 100/1000 (FX) Ports | 4 |
| Total 10/100/1000 (RJ45) Ports | 8 |
| Total Ethernet Ports | 12 |
| Operating Voltage: | DC 12V / 24V |
| Mounting: | DIN Rail / Wall |
| IP Rating: | IP30 |
Description
Bobcat Managed Industrial Switch for DIN Rail
Real-time communication using TSN.
- 12 Ports in total: 8x 10/100/1000BASE TX / RJ45, 4x 100/1000Mbit/s fiber
- 1. Uplink: 2 x SFP Slot (100/1000 Mbit/s)
- 2. Uplink: 2 x SFP Slot (100/1000 Mbit/s)
- Buffered Real Time Clock
- Operating voltage 2 x 12 V DC ... 24 VDC
- Management, Flow Control (802.3X)
- Static Unicast/Multicast Address Entries
- MAC-based Port Security
- SNTP Client, SNTP Server
- Operating temperature: 0-+60°C
- Mounting: DIN Rail
- Protection class: IP30
- Approvals: CE, FCC, EN61131, EN62368-1
