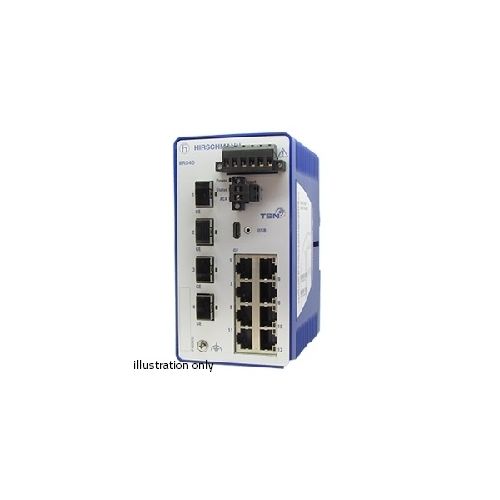

942170010 | BRS50-8TX/4SFP | Bobcat Ethernet Switch
Bobcat Managed Industrial Switch for DIN Rail, Real-time communication using TSN, 12 Ports in total, Operating voltage 2 x 12 V DC ... 24 VDC
| Complete Electronics Part No. | 942170010 |
|---|---|
| Manufacturers Part No. | 942170010 |
| Ethernet Product Type: | BRS50 |
| Total 100/1000 (FX) Ports: | 4 |
| Total 10/100/1000 (RJ45) Ports: | 8 |
| Total Ethernet Ports: | 12 |
| SFP / XFP Base: | 2.5 Gigabit |
| Operating Voltage: | DC 12V / 24V |
| Mounting: | DIN Rail / Wall |
| IP Rating: | IP30 |
Description
Bobcat Managed Industrial Switch for DIN Rail
Real-time communication using TSN.
12 Ports in total
8x 10/100/1000BASE TX / RJ45; 4x100/1000/2500Mbit/s fiber
1. Uplink: 2 x SFP Slot (100/1000/2500 Mbit/s)
2. Uplink: 2 x SFP Slot (100/1000/2500 Mbit/s)
Operating voltage 2 x 12 V DC ... 24 VDC
Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
Digital Input: 1 x plug-in terminal block, 2-pin
Operating temperature: 0-+60°C
Dimensions 73 mm x 138 mm x 115 mm
Mounting: DIN Rail
Protection class: IP30
Approvals: CE, FCC, EN61131, EN62368-1
Part Number:942170010
