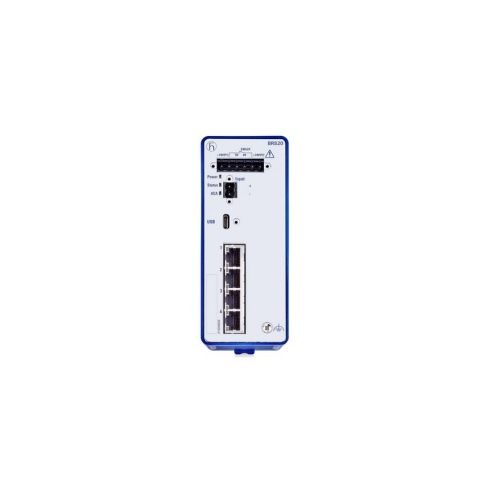

942170011 | BRS20-4TX-EEC | Bobcat Ethernet Switch
Bobcat Managed Industrial Switch for DIN Rail, 4 Ports in total: 4x 10/100BASE TX / RJ45, Power supply/signaling contact: 1 x plug-in terminal block
| Complete Electronics Part No. | 942170011 |
|---|---|
| Manufacturers Part No. | 942 170-011 |
| Ethernet Product Type: | BRS20 |
| Total 10/100 (RJ45) Ports | 4 |
| Total Ethernet Ports | 4 |
Description
Bobcat Managed Industrial Switch for DIN Rail
4 Ports in total: 4x 10/100BASE TX / RJ45
- Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
- Digital Input: 1 x plug-in terminal block, 2-pin
- Operating voltage 2 x 12 V DC ... 24 VDC
- Power consumption 5W
- Real-time communication using TSN.
- Operating temperature: -40-+70°C
- Mounting: DIN Rail
- Protection class: IP30
- Dimensions 57 mm x 138 mm x 115 mm
- Hirschmann Part Number: 942170011
