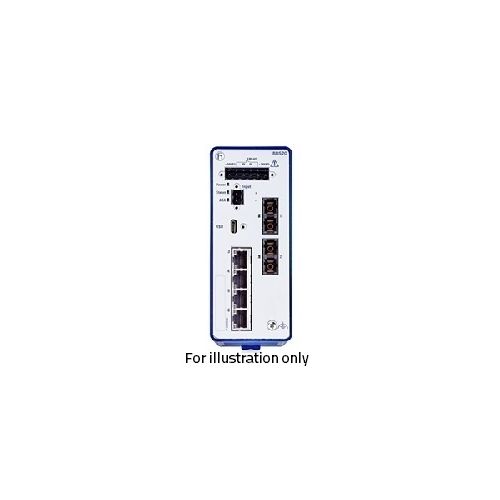

942170015 | BRS20-4TX/2FX-SM-EEC | Bobcat Ethernet Switch
Bobcat Managed Industrial Switch for DIN Rail, Real-time communication using TSN, 6 Ports in total, Power supply/signaling contact x1
| Complete Electronics Part No. | 942170015 |
|---|---|
| Manufacturers Part No. | 942 170-015 |
| Ethernet Product Type: | BRS20 |
| Total 10/100 (RJ45) Ports: | 4 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 6 |
Description
Bobcat Managed Industrial Switch for DIN Rail
Real-time communication using TSN.
6 Ports in total
4 x10/100BASE TX / RJ45; 2x 100Mbit/s fiber
Uplink: 1 x 100BASE-FX, SM-SC
Uplink: 1 x 100BASE-FX, SM-SC
Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
Digital Input: 1 x plug-in terminal block, 2-pin
Single mode fibre (SM) 9/125
Operating voltage 2 x 12 V DC ... 24 VDC
Operating temperature: -40°C to +70°C
Dimensions 57 mm x 138 mm x 115 mm
Weight: 420 g
Housing: Plastic
Mounting: DIN Rail
Protection class: IP30
Part Number: 942170015
