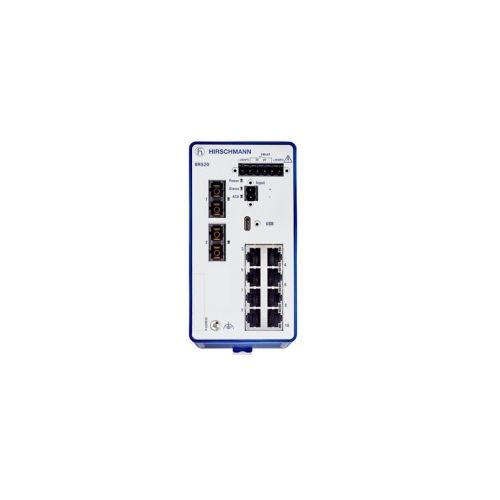

942170016 | BRS20-8TX/2FX-SM-EEC | Bobcat Ethernet Switch
Bobcat Managed Industrial Switch for DIN Rail, Real-time communication using TSN, 10 Ports in total, PSU signaling contact: 1 x plug-in terminal block, 6-pin
| Complete Electronics Part No. | 942170016 |
|---|---|
| Manufacturers Part No. | 942170016 |
| Ethernet Product Type: | BRS20 |
| Total 10/100 (RJ45) Ports: | 8 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 10 |
Description
Bobcat Managed Industrial Switch for DIN Rail
Real-time communication using TSN.
10 Ports in total: 8x10/100BASE TX / RJ45; 2x 100Mbit/s fiber
1. Uplink: 1 x 100BASE-FX, SM-SC
2. Uplink: 1 x 100BASE-FX, SM-SC
Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
Digital Input: 1 x plug-in terminal block, 2-pin
Operating voltage 2 x 12 V DC ... 24 VDC
Manual Cable Crossing, Port Power Down
Operating temperature: -40°C to +70°C
Dimensions 73 mm x 138 mm x 115 mm
Housing: Plastic
Mounting: DIN Rail
Protection class: IP30
Approvals: CE, FCC, EN61131, EN62368-1
Part Number: 942170016
