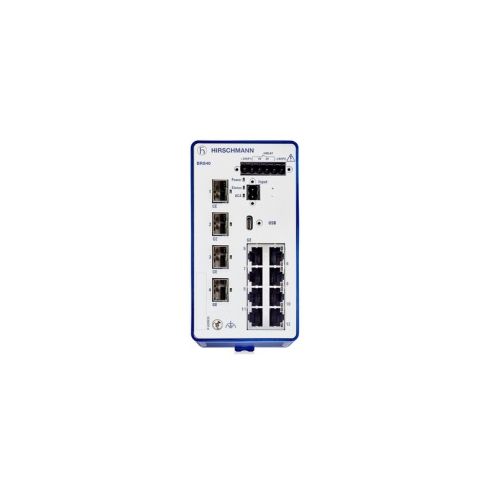

942170019 | BRS40-8TX/4SFP-EEC | Bobcat Ethernet Switch
Bobcat Managed Industrial Switch for DIN Rail, Real-time communication using TSN., 12 Ports in total, Buffered Real Time Clock
| Complete Electronics Part No. | 942170019 |
|---|---|
| Manufacturers Part No. | 942 170-019 |
| Ethernet Product Type: | BRS40 |
| Total 100/1000 (FX) Ports: | 4 |
| Total 10/100/1000 (RJ45) Ports: | 8 |
| Total Ethernet Ports: | 12 |
| Operating Voltage: | DC 12V / 24V |
| Mounting: | DIN Rail / Wall |
| IP Rating: | IP30 |
Description
Bobcat Managed Industrial Switch for DIN Rail
Real-time communication using TSN.
12 Ports in total
8x 10/100/1000BASE TX / RJ45, 4x 100/1000Mbit/s fiber
1. Uplink: 2 x SFP Slot (100/1000 Mbit/s)
2. Uplink: 2 x SFP Slot (100/1000 Mbit/s)
Buffered Real Time Clock
Operating voltage 2 x 12 V DC ... 24 VDC
Management, Flow Control (802.3X)
Static Unicast/Multicast Address Entries
MAC-based Port Security
SNTP Client, SNTP Server
Operating temperature: -40°C to +70°C
Mounting: DIN Rail
Protection class: IP30
Approvals: CE, FCC, EN61131, EN62368-1
Part Number: 942170019
