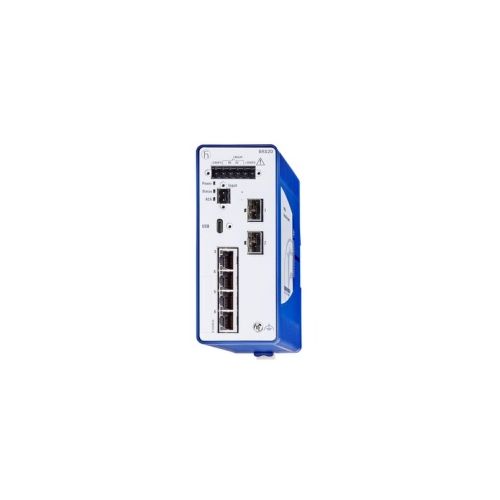

942170021 | BRS20-4TX/2SFP | BOBCAT Ethernet Switch
6 port Fast-Ethernet-Switch, 4 x 10/100 BASE TX, 2 x 100 Mbit's fibre, RJ45 managed, fanless design Operating voltage 2 x 12VDC ...24 VDC
| Complete Electronics Part No. | 942170021 |
|---|---|
| Manufacturers Part No. | 942170021 |
| Ethernet Product Type: | BRS20 |
| Total 10/100 (RJ45) Ports: | 8 |
| Total Ethernet Ports: | 8 |
| Operating Voltage: | DC 24V/48V |
| Mounting: | DIN Rail |
| IP Rating: | IP30 |
Description
BRS20-0600Z6Z6-STCX99HHSES
6 port managed Fast-Ethernet-Switch
4 x 10/100 BASE TX, RJ45
2 x 100 Mbit's fibre
Operating voltage 2 x 12....24VDC
Operating temperature 0ºC ... 60 ºC
Mounting: DIN rail
Fanless design
Weight: 420g
Protection Class: IP30
Housing Material: Plastic
Part Number: 942170021
Accessories available to order:-
AutoConfiguration Adapter ACA22-USB-C (EEC) 942-239-001
6-pin terminal block with screw lock (50 pieces) 943 845-013
2-pin terminal block with screwlock (50 pieces) 943 845-009
Industrial HiVision Network Management Software 943 156-xxx
