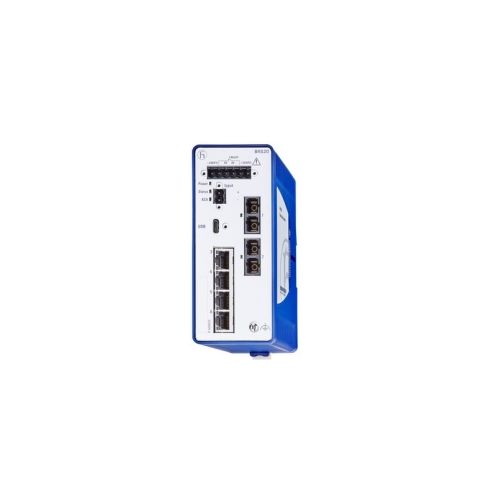

942170025 | BRS20-4TX/2FX-HL | BOBCAT Ethernet Switch
6 port Fast-Ethernet-Switch, 2x uplink: 100BASE-FX, MM-SC, 4 x standard 10/100 BASE TX, RJ45, managed, fanless design Operating voltage 2 x 12 to 24 VDC
| Complete Electronics Part No. | 942170025 |
|---|---|
| Manufacturers Part No. | 942170025 |
| Ethernet Product Type: | BRS20 |
| Total 10/100 (RJ45) Ports: | 4 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 6 |
| FX (Optical) Connector Type: | SC |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| Operating Voltage: | DC 12V / 24V |
| Mounting: | DIN Rail |
| IP Rating: | IP30 |
Description
BRS20-0600M2M2-STCX99HHSESXX.X.XX
6 port Managed Fast-Ethernet-Switch
uplink: 100BASE-FX, MM-SC
uplink: 100BASE-FX, MM-SC
4 x standard 10/100 BASE TX, RJ45
Operating voltage 2 x 12 to 24 VDC
Operating temperature 0 ºC ... 60 ºC
Managed
Mounting: DIN rail
Fanless design
Weight: 420g
Protection Class: IP30
Housing Material: Plastic
Part Number: 942170025
- Accessories available to order:-
- AutoConfiguration Adapter ACA22-USB-C (EEC) 942-239-001
- 6-pin terminal block with screw lock (50 pieces) 943 845-013
- BRS20-0600M2M2-STCZ99HHSESXX.X.XX
- Industrial HiVision Network Management Software 943 156-xxx
