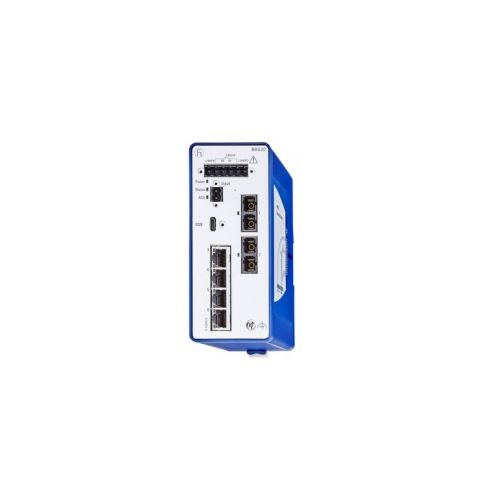

942170027 | BRS20-4TX/2FX-SM-HL | BOBCAT Ethernet Switch
Managed 6 port Fast-Ethernet-Switch, Din Rail Mounted, 2 x uplink: 100BASE-FX, SM-SC, 4 x standard 10/100 BASE TX, RJ45
| Complete Electronics Part No. | 942170027 |
|---|---|
| Manufacturers Part No. | 942170027 |
| Ethernet Product Type: | BRS20 |
| Total 10/100 (RJ45) Ports: | 4 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 6 |
| FX (Optical) Connector Type: | SC |
| FX (Optical) Cable Type: | Single Mode (SM) |
| Operating Voltage: | DC 12V / 24V |
| Mounting: | DIN Rail |
| IP Rating: | IP30 |
Description
BRS20-0600S2S2-STCX99HHSESXX.X.XX
6 port Managed Fast-Ethernet-Switch
uplink: 100BASE-FX, SM-SC
uplink: 100BASE-FX, SM-SC
4 x standard 10/100 BASE TX, RJ45
Operating voltage 2 x 12 to 24 VDC
Operating temperature 0 ºC ... 60 ºC
Mounting: DIN rail
Fanless design
Weight: 420g
Protection Class: IP30
Housing Material: Plastic
Part Number: 942170027
Accessories available to order:-
AutoConfiguration Adapter ACA22-USB-C (EEC) 942-239-001
6-pin terminal block with screw lock (50 pieces) 943 845-013
2-pin terminal block with screwlock (50 pieces) 943 845-009
Industrial HiVision Network Management Software 943 156-xxx
