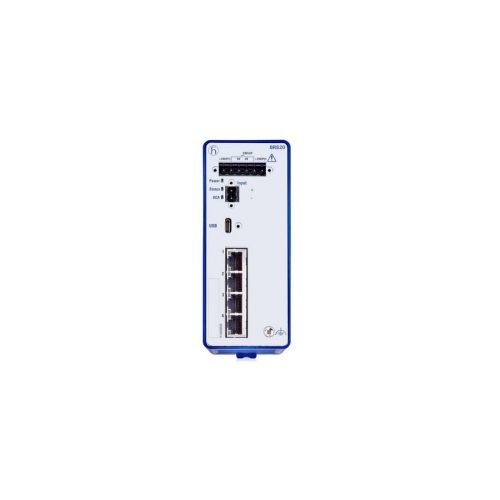

942170034 | BRS20-4TX-EEC-HL | BOBCAT Ethernet Switch
Managed 4 port Fast-Ethernet-Switch, 4 x standard 10/100 BASE TX, RJ45, 4 x standard 10/100 BASE TX, RJ45
| Complete Electronics Part No. | 942170034 |
|---|---|
| Manufacturers Part No. | 942170034 |
| Ethernet Product Type: | BRS20 |
| Total 10/100 (RJ45) Ports: | 4 |
| Total Ethernet Ports: | 4 |
| Operating Voltage: | DC 12V / 24V |
| Mounting: | DIN Rail |
| IP Rating: | IP30 |
Description
BRS20-04009999-TTCX99HHSESXX.X.XX
4 port Fast-Ethernet-Switch
Managed
Mounting: DIN rail
Fanless design
4 x standard 10/100 BASE TX, RJ45
Operating voltage 2 x 12....24 VDC
Operating temperature -40ºC ... 70ºC
Weight: 380g
Protection Class: IP30
Housing Material: Plastic
Part Number:942170034
Accessories available to order:-
AutoConfiguration Adapter ACA22-USB-C (EEC) 942-239-001
6-pin terminal block with screw lock (50 pieces) 943 845-013
2-pin terminal block with screwlock (50 pieces) 943 845-009
Industrial HiVision Network Management Software 943 156-xxx
