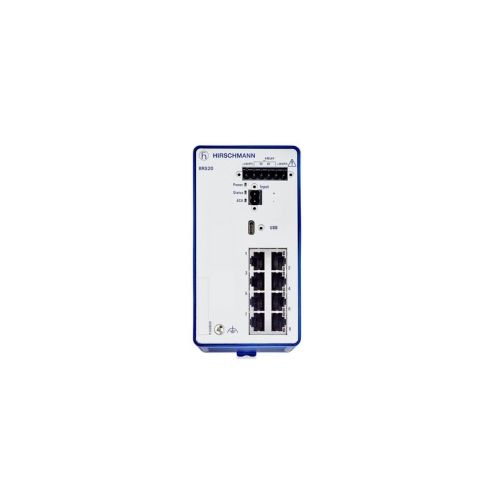

942170035 | BRS20-8TX-EEC-HL | BOBCAT Ethernet Switch
Managed 8 port Fast-Ethernet-Switch, 8 x standard 10/100 BASE TX, RJ45, Operating voltage 2 x 12 to 24 VDC
| Complete Electronics Part No. | 942170035 |
|---|---|
| Manufacturers Part No. | 942170035 |
| Ethernet Product Type: | BRS20 |
| Total 10/100 (RJ45) Ports: | 8 |
| Total Ethernet Ports: | 8 |
| Operating Voltage: | DC 12V / 24V |
| Mounting: | DIN Rail |
| IP Rating: | IP30 |
Description
BRS20-08009999-TTCX99HHSESXX.X.XX
8 port Fast-Ethernet-Switch
Managed
Mounting: DIN rail
Fanless design
8 x standard 10/100 BASE TX, RJ45
Operating voltage 2 x 12 to 24 VDC
Operating temperature -40ºC ... 70 ºC
Weight: 500g
Protection Class: IP30
Part Number: 942170035
Accessories available to order:-
AutoConfiguration Adapter ACA22-USB-C (EEC) 942-239-001
6-pin terminal block with screw lock (50 pieces) 943 845-013
2-pin terminal block with screwlock (50 pieces) 943 845-009
Industrial HiVision Network Management Software 943 156-xxx
