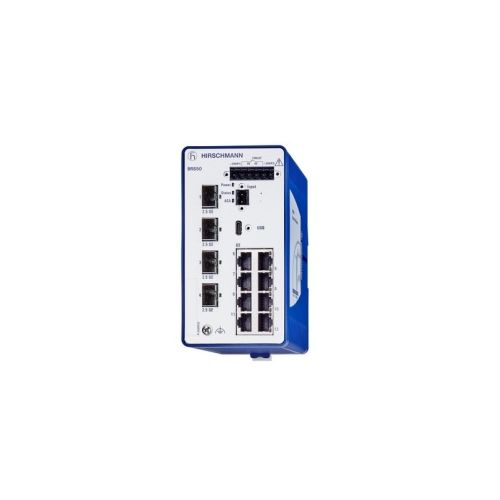

942170045 | BRS52-8TX/4SFP | Bobcat Ethernet Switch
Managed Industrial Switch for DIN Rail, fanless design All Gigabit type with 2.5 Gigbit uplinks with IEEE 802.3at (PoE+ inline power)
| Complete Electronics Part No. | 942170045 |
|---|---|
| Manufacturers Part No. | 942170045 |
| Ethernet Product Type: | BRS52 |
| Total 10/100/1000 (RJ45) Ports: | 4 |
| Total 100/1000/2500 Ports: | 4 |
| Number Of PoE Ports: | 8 |
| Total Ethernet Ports: | 12 |
| Operating Voltage: | 2 x (48 VDC (PoE)/ 54 VDC (PoE+)) |
| Mounting: | DIN Rail / Wall |
| IP Rating: | IP30 |
Description
Bobcat Managed Industrial Switch for DIN Rail
BRSBRS52-00122Q2Q-SPCY99HHSESXX.X.XX
- Real-time communication using TSN.
- 12 Ports in total
- 8 x 10/100/1000 BASE TX / RJ45;
- 4 x 100/1000/2500 Mbit/s Fibre
- 8 x PoE(+) Ports (phantom power)
- 1. Uplink: 2 x SFP Slot (100/1000/2500 Mbit/s)
- 2. Uplink: 2 x SFP Slot (100/1000/2500 Mbit/s)
- Operating voltage 2 x (48 VDC (PoE)/ 54 VDC (PoE+))
- Max. PoE power 240 W
- Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
- Local Management: USB C
- Operating temperature: 0°C to-+60°C
- Dimensions 73 mm x 138 mm x 115 mm
- Weight: 550g
- Housing Material: PC-ABS
- Mounting: DIN Rail
- Protection class: IP30
- Approvals: CE, FCC, EN61131, EN62368-1
Accessories
- AutoConfiguration Adapter ACA22-USB-C (EEC) 942239001
- 6-pin terminal block with screw lock (50 pieces) 943 845-013
- 2-pin terminal block with screw lock (50 pieces) 943 845-009
- Industrial HiVision Network Management Software 943 156-xxx
