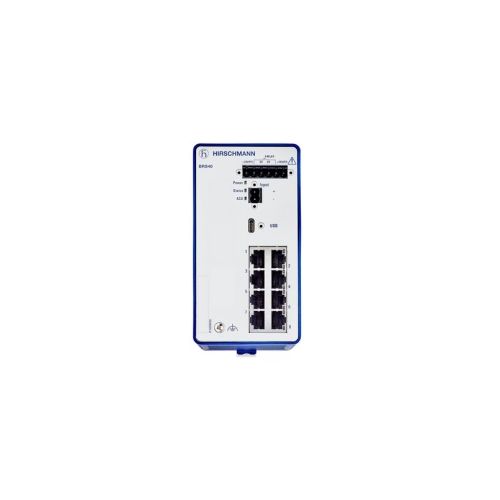

942170051 | BRS42-8TX -EEC | Bobcat Ethernet Switch

8 Port Managed Industrial Switch for DIN Rail, All Gigabit type, power sourcing equipment in accordance with IEEE 802.3at (PoE+ inline power)
More Information
Complete Electronics Part No 942170051
Manufacturers Part No. 942170051
Ethernet Product Type BRS42
Total 10/100/1000 (RJ45) Ports 8
Number Of POE Ports 8
Total Ethernet Ports 8
Operating Voltage 2 x (48 VDC (PoE)/ 54 VDC (PoE+))
Mounting DIN Rail / Wall
IP Rating IP30
Description

Bobcat Managed Industrial Switch for DIN Rail

BRS42-00089999-TPDY99HHSESXX.X.XX

  • Real-time communication using TSN.
  • 8 Ports in total
  • 8 x 10/100/1000 BASE TX / RJ45;
  • 8 x PoE(+) Ports (phantom power)
  • Operating voltage 2 x (48 VDC (PoE)/ 54 VDC (PoE+))
  • Max. PoE power 240 W
  • Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
  • Local Management: USB C
  • Operating temperature: -40°C to-+70°C
  • Dimensions 123 mm x 140 mm x 115 mm
  • Weight: 1250g
  • Housing Material: Metal
  • Mounting: DIN Rail
  • Protection class: IP30
  • Approvals: CE, FCC, EN61131, EN62368-1

Accessories

  • AutoConfiguration Adapter ACA22-USB-C (EEC) 942239001
  • 6-pin terminal block with screw lock (50 pieces) 943 845-013
  • 2-pin terminal block with screw lock (50 pieces) 943 845-009
  • Industrial HiVision Network Management Software 943 156-xxx
