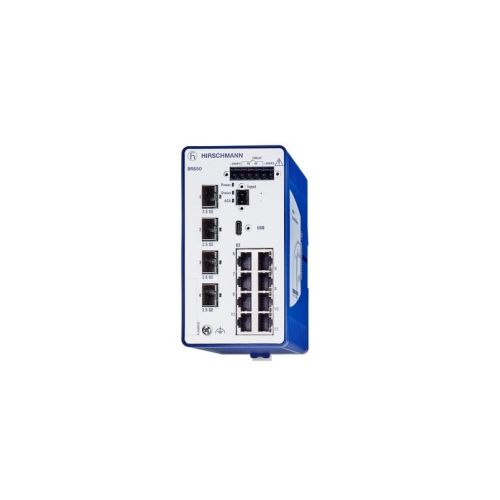

942170052 | BRS32-8TX/4SFP-EEC | Bobcat Ethernet Switch

Bobcat Managed Industrial Switch for DIN Rail, Real-time communication using TSN, 12 Ports in total, Operating voltage 2 x (48 VDC (PoE)/ 54 VDC (PoE+))
More Information
Complete Electronics Part No 942170052
Manufacturers Part No. 942170052
Ethernet Product Type BRS32
Total 10/100 (RJ45) Ports 8
Total 100/1000 (FX) Ports 4
Number Of POE Ports 8
Total Ethernet Ports 12
Operating Voltage 2 x (48 VDC (PoE)/ 54 VDC (PoE+))
Mounting DIN Rail / Wall
IP Rating IP30
Description

Bobcat Managed Industrial Switch for DIN Rail

BRS32-0804OOOO-TPDY99HHSESXX.X.XX

  • Real-time communication using TSN.
  • 12 Ports in total
  • 8 x 10/100 BASE TX / RJ45;
  • 4 x 100/1000Mbit/s Fibre
  • 8 x PoE(+) Ports (phantom power)
  • 1. Uplink: 2 x SFP Slot (100/1000 Mbit/s)
  • 2. Uplink: 2 x SFP Slot (100/1000 Mbit/s)
  • Operating voltage 2 x (48 VDC (PoE)/ 54 VDC (PoE+))
  • Max. PoE power 240 W
  • Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
  • Local Management: USB C
  • Operating temperature: -40°C to-+70°C
  • Dimensions 123 mm x 140 mm x 115 mm
  • Weight: 1300g
  • Housing Material: Metal
  • Mounting: DIN Rail
  • Protection class: IP30
  • Approvals: CE, FCC, EN61131, EN62368-1

Accessories

  • AutoConfiguration Adapter ACA22-USB-C (EEC) 942239001
  • 6-pin terminal block with screw lock (50 pieces) 943 845-013
  • 2-pin terminal block with screw lock (50 pieces) 943 845-009
  • Industrial HiVision Network Management Software 943 156-xxx
