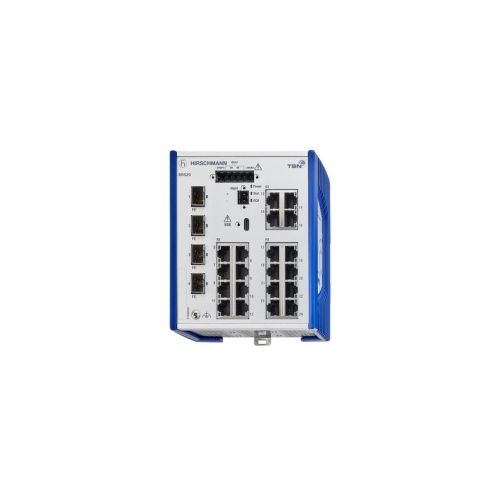

942170058 | BRS20-20TX/4SFP-EEC
Managed 24 port Fast-Ethernet-Switch, 20x 10/100 BASE TX, RJ45, 4x 100Mbit/s fiber Uplink (SFP), Operating temperature -40ºC to 70 ºC
| Complete Electronics Part No. | 942170058 |
|---|---|
| Manufacturers Part No. | 942170058 |
| Ethernet Product Type: | BRS20 |
| Total 10/100 (RJ45) Ports: | 20 |
| Total 100 Base Ports: | 4 |
| Total Ethernet Ports: | 24 |
| Operating Voltage: | DC 12V / 24V |
| Mounting: | DIN Rail |
| IP Rating: | IP30 |
Description
BRS20-2400ZZZZ-TTDY99HHSESXX.X.XX
24 port Fast-Ethernet-Switch
- Managed
- Mounting: DIN rail
- Fanless design
- Enable real-time communication using TSN
- 20 x standard 10/100 BASE TX, RJ45
- 4x 100Mbit/s fiber ; Uplink: 2 x SFP Slot (100 Mbit/s) ; Uplink: 2 x SFP Slot (100 Mbit/s)
- Operating voltage 2 x 12 to 24 VDC
- Operating temperature -40ºC to 70 ºC
- Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
- Digital Input 1 x plug-in terminal block, 2-pin
- Weight: 1620g
- Dimensions (WxHxD): 123 mm x 140 mm x 115 mm
- Protection Class: IP30
- Housing Material: Metal
- Local Device Management: USB C
- Line / Star topology: Any
- Digital IO Management,
- Manual Cable Crossing
- Port Power Down
Accessories
- AutoConfiguration Adapter ACA22-USB-C (EEC) 942239001
- 6-pin terminal block with screw lock (50 pieces) 943 845-013
- 2-pin terminal block with screw lock (50 pieces) 943 845-009
- Industrial HiVision Network Management Software 943 156-xxx
