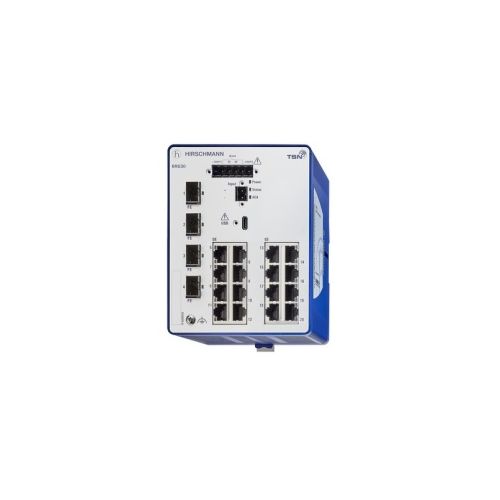

942170065 | BRS40-16TX/4SFP | Bobcat Ethernet Switch
Bobcat Managed Industrial Switch for DIN Rail, 16 Ports 10/100/1000BASE TX / RJ45, 4 x SFP, Real-time communication using TSN
| Complete Electronics Part No. | 942170065 |
|---|---|
| Manufacturers Part No. | 942170065 |
| Ethernet Product Type: | BRS40 |
| Total 100/1000 (FX) Ports: | 4 |
| Total 10/100/1000 (RJ45) Ports: | 16 |
| Total Ethernet Ports: | 20 |
| Operating Voltage: | DC 12V / 24V |
| Mounting: | DIN Rail / Wall |
| IP Rating: | IP30 |
Description
Bobcat Managed Industrial Switch for DIN Rail
BRS40-0020OOOO-STCY99HHSESXX.X.XX
- 16 Ports 10/100/1000BASE TX / RJ45
- 4x 100/1000Mbit/s fibre; 1. Uplink: 2 x SFP Slot (100/1000 Mbit/s) ; 2. Uplink: 2 x SFP Slot (100/1000 Mbit/s)
- Real-time communication using TSN.
- Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
- Digital Input: 1 x plug-in terminal block, 2-pin
- Local Management: USB-C
- Operating voltage 2 x 12 V DC ... 24 VDC
- Buffered Real Time Clock
- SNTP Client, SNTP Server
- Port Power Down
- Operating temperature: 0°C to 60°C
- Mounting: DIN Rail
- Protection class: IP30
- Dimensions: 109 mm x 138 mm x 115 mm
- Weight: 950g
- Housing Material: PC-ABS
- Protection Class: IP30
- Approvals: CE, FCC, EN61131, EN62368-1
- Industrial Profiles: EtherNet/IP Protocol, IEC61850 Protocol (MMS Server, Switch Model), Modbus TCP, PROFINET Protocol
Accessories
- AutoConfiguration Adapter ACA22-USB-C (EEC) 942239001
- 6-pin terminal block with screw lock (50 pieces) 943 845-013
- 2-pin terminal block with screw lock (50 pieces) 943 845-009
- Industrial HiVision Network Management Software 943 156-xxx
