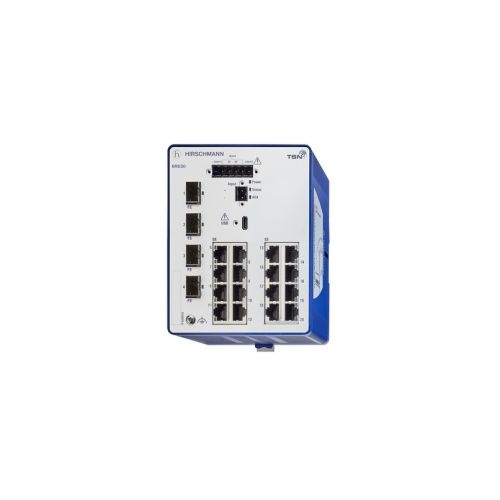

942170066 | BRS40-16TX/4SFP-EEC | Bobcat Ethernet Switch

Bobcat Managed Industrial Switch for DIN Rail, 16 Ports 10/100/1000BASE TX / RJ45, 4 x SFP, Real-time communication using TSN
More Information
Complete Electronics Part No. 942170066
Manufacturers Part No. 942170066
Ethernet Product Type: BRS40
Total 100/1000 (FX) Ports: 4
Total 10/100/1000 (RJ45) Ports: 16
Total Ethernet Ports: 20
Operating Voltage: DC 12V / 24V
Mounting: DIN Rail / Wall
IP Rating: IP30
Description

Bobcat Managed Industrial Switch for DIN Rail

BRS40-0020OOOO-TTDY99HHSESXX.X.XX

  • 16 Ports 10/100/1000BASE TX / RJ45
  • 4x 100/1000Mbit/s fibre; 1. Uplink: 2 x SFP Slot (100/1000 Mbit/s) ; 2. Uplink: 2 x SFP Slot (100/1000 Mbit/s)
  • Real-time communication using TSN.
  • Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
  • Digital Input: 1 x plug-in terminal block, 2-pin
  • Local Management: USB-C
  • Operating voltage 2 x 12 V DC ... 24 VDC
  • Buffered Real Time Clock
  • SNTP Client, SNTP Server
  • Port Power Down
  • Operating temperature: -40°C to 70°C
  • Mounting: DIN Rail
  • Protection class: IP30
  • Dimensions: 123 mm x 140 mm x 115 mm
  • Weight: 1700g
  • Housing Material: Metal
  • Protection Class: IP30
  • Approvals: CE, FCC, EN61131, EN62368-1
  • Industrial Profiles: EtherNet/IP Protocol, IEC61850 Protocol (MMS Server, Switch Model), Modbus TCP, PROFINET Protocol

Accessories

  • AutoConfiguration Adapter ACA22-USB-C (EEC) 942239001
  • 6-pin terminal block with screw lock (50 pieces) 943 845-013
  • 2-pin terminal block with screw lock (50 pieces) 943 845-009
  • Industrial HiVision Network Management Software 943 156-xxx
