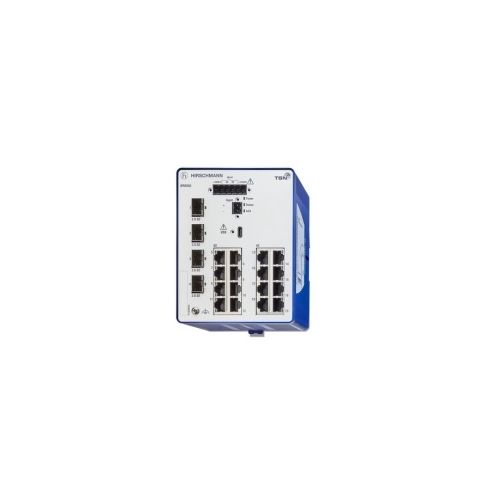

942170069 | BRS50-16TX/4SFP | Bobcat Ethernet Switch
Bobcat Managed Industrial Switch for DIN Rail, Real-time communication using TSN, 20 Ports in total, Operating voltage 2 x 12 V DC ... 24 VDC
| Complete Electronics Part No. | 942170069 |
|---|---|
| Manufacturers Part No. | 942170069 |
| Ethernet Product Type: | BRS50 |
| Total 100/1000 (FX) Ports: | 4 |
| Total 10/100/1000 (RJ45) Ports: | 16 |
| Total Ethernet Ports: | 20 |
| SFP / XFP Base: | 2.5 Gigabit |
| Operating Voltage: | DC 12V / 24V |
| Mounting: | DIN Rail / Wall |
| IP Rating: | IP30 |
Description
Bobcat Managed Industrial Switch for DIN Rail
BRS50-00202Q2Q-STCY99HHSESXX.X.XX
- Real-time communication using TSN.
- 20 Ports in total
- 16 x 10/100/1000BASE TX / RJ45; 4x100/1000/2500Mbit/s fiber
- 1. Uplink: 2 x SFP Slot (100/1000/2500 Mbit/s)
- 2. Uplink: 2 x SFP Slot (100/1000/2500 Mbit/s)
- Operating voltage 2 x 12 V DC ... 24 VDC
- Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
- Digital Input: 1 x plug-in terminal block, 2-pin
- Operating temperature: 0-+60°C
- Dimensions 109 mm x 138 mm x 115 mm
- Weight: 950g
- Housing Material: PC-ABS
- Mounting: DIN Rail
- Protection class: IP30
- Approvals: CE, FCC, EN61131, EN62368-1
