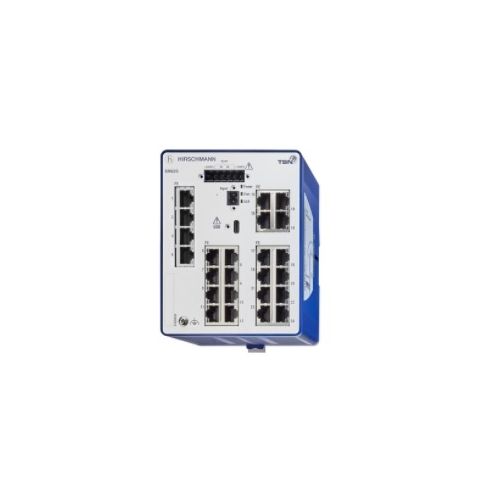

942170083 | BRS20-24TX
Managed 24 port Fast-Ethernet-Switch, 24 x standard 10/100 BASE TX, RJ45, Real-time communication using TSN, DIN Rail Mounting
| Complete Electronics Part No. | 942170083 |
|---|---|
| Manufacturers Part No. | 942170083 |
| Ethernet Product Type: | BRS20 |
| Total 10/100 (RJ45) Ports: | 24 |
| Total Ethernet Ports: | 24 |
| Operating Voltage: | DC 12V / 24V |
| Mounting: | DIN Rail |
| IP Rating: | IP30 |
Description
BRS20-24009999-STCY99HHSESXX.X.XX
24 port Fast-Ethernet-Switch
- Managed
- Mounting: DIN rail
- Fanless design
- Enable real-time communication using TSN
- 24 x standard 10/100 BASE TX, RJ45
- Operating voltage 2 x 12 to 24 VDC
- Operating temperature 0 ºC to 60 ºC
- Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
- Digital Input 1 x plug-in terminal block, 2-pin
- Weight: 1160g
- Dimensions (WxHxD): 109 mm x 138 mm x 115 mm
- Protection Class: IP30
- Housing Material: PC-ABS
- Local Device Management: USB C
- Line / Star topology: Any
- Digital IO Management,
- Manual Cable Crossing
- Port Power Down
