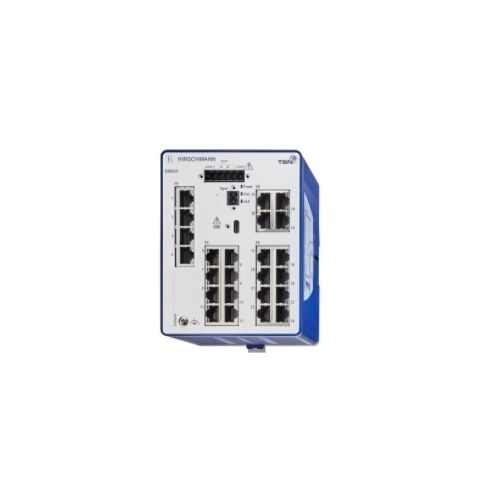

942170084 | BRS20-24TX-EEC
Managed 24 port Fast-Ethernet-Switch, 24 x standard 10/100 BASE TX, RJ45, Operating temperature -40ºC to 70 ºC
| Complete Electronics Part No. | 942170084 |
|---|---|
| Manufacturers Part No. | 942170084 |
| Ethernet Product Type: | BRS20 |
| Total 10/100 (RJ45) Ports: | 24 |
| Total Ethernet Ports: | 24 |
| Operating Voltage: | DC 12V / 24V |
| Mounting: | DIN Rail |
| IP Rating: | IP30 |
Description
BRS20-24009999-TTDY99HHSESXX.X.XX
24 port Fast-Ethernet-Switch
- Managed
- Mounting: DIN rail
- Fanless design
- Enable real-time communication using TSN
- 24 x standard 10/100 BASE TX, RJ45
- Operating voltage 2 x 12 to 24 VDC
- Operating temperature -40ºC to 70 ºC
- Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
- Digital Input 1 x plug-in terminal block, 2-pin
- Protection Class: IP30
- Housing Material: PC-ABS
- Local Device Management: USB C
- Line / Star topology: Any
- Digital IO Management,
- Manual Cable Crossing
- Port Power Down
