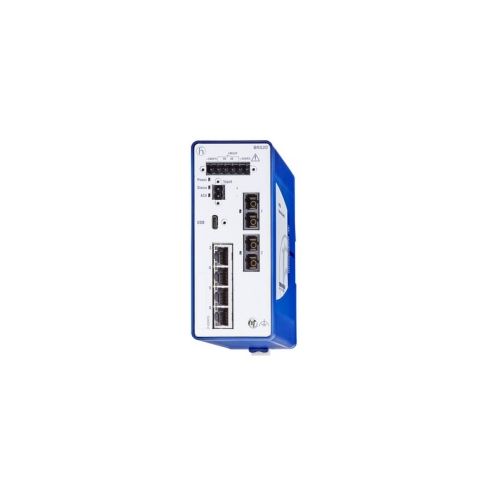

942170105 | BRS20-4TX/2FX-2A | BOBCAT Ethernet Switch
Availability: Approximately 4 to 6 weeks
6 port Fast-Ethernet-Switch, 4 x standard 10/100 BASE TX, RJ45, Uplink: 2 x 100BASE-FX, MM-SC, Managed Industrial Switch for DIN Rail
| Complete Electronics Part No. | 942170105 |
|---|---|
| Manufacturers Part No. | 942170105 |
| Ethernet Product Type: | BRS20 |
| Total 10/100 (RJ45) Ports: | 4 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 6 |
| FX (Optical) Connector Type: | SC |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| Operating Voltage: | DC 12V / 24V |
| Mounting: | DIN Rail |
| IP Rating: | IP30 |
Description
BRS20-0600M2M2-STCY99HHSEAXX.X.XX
6 port Fast-Ethernet-Switch
- Managed
- Mounting: DIN rail
- Fanless design
- 4 x standard 10/100 BASE TX, RJ45
- Uplink: 2 x 100BASE-FX, MM-SC
- Operating voltage 2 x 12 to 24 VDC
- Operating temperature 0 ºC ... 60 ºC
- Weight: 420g
- Protection Class: IP30
- Housing Material: PC-ABS
- Dimensions: 57mm x 138mm x 115mm
- Accessories available to order:-
- AutoConfiguration Adapter ACA22-USB-C (EEC) 942-239-001
- 6-pin terminal block with screw lock (50 pieces) 943 845-013
- 2-pin terminal block with screwlock (50 pieces) 943 845-009
- Industrial HiVision Network Management Software 943 156-xxx
